Inference Frameworks

This task combines a runtime image, startup command, service port, and framework type into a reusable deployment runtime.

Target Outcome

The inference framework starts a service with the target image and exposes the expected port for model assets to reference.

Applicable Roles

• Platform Operator

Before You Start

• The inference image is prepared and validated.
• Framework type, startup command, model placeholder, service port, and health-check behavior are confirmed.

Procedure

Add a Framework

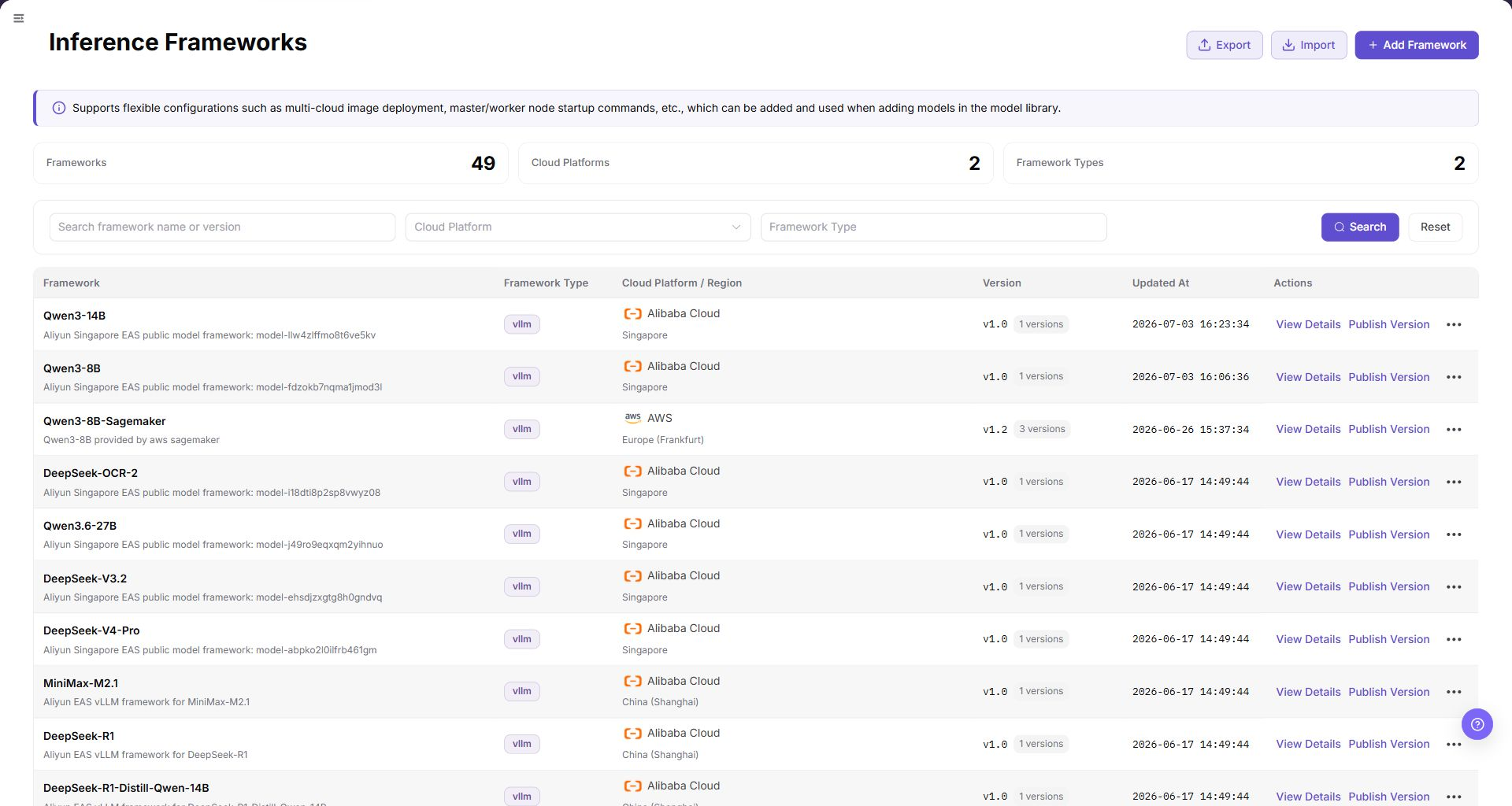

1. Go to Deploy Assets > Inference Frameworks.

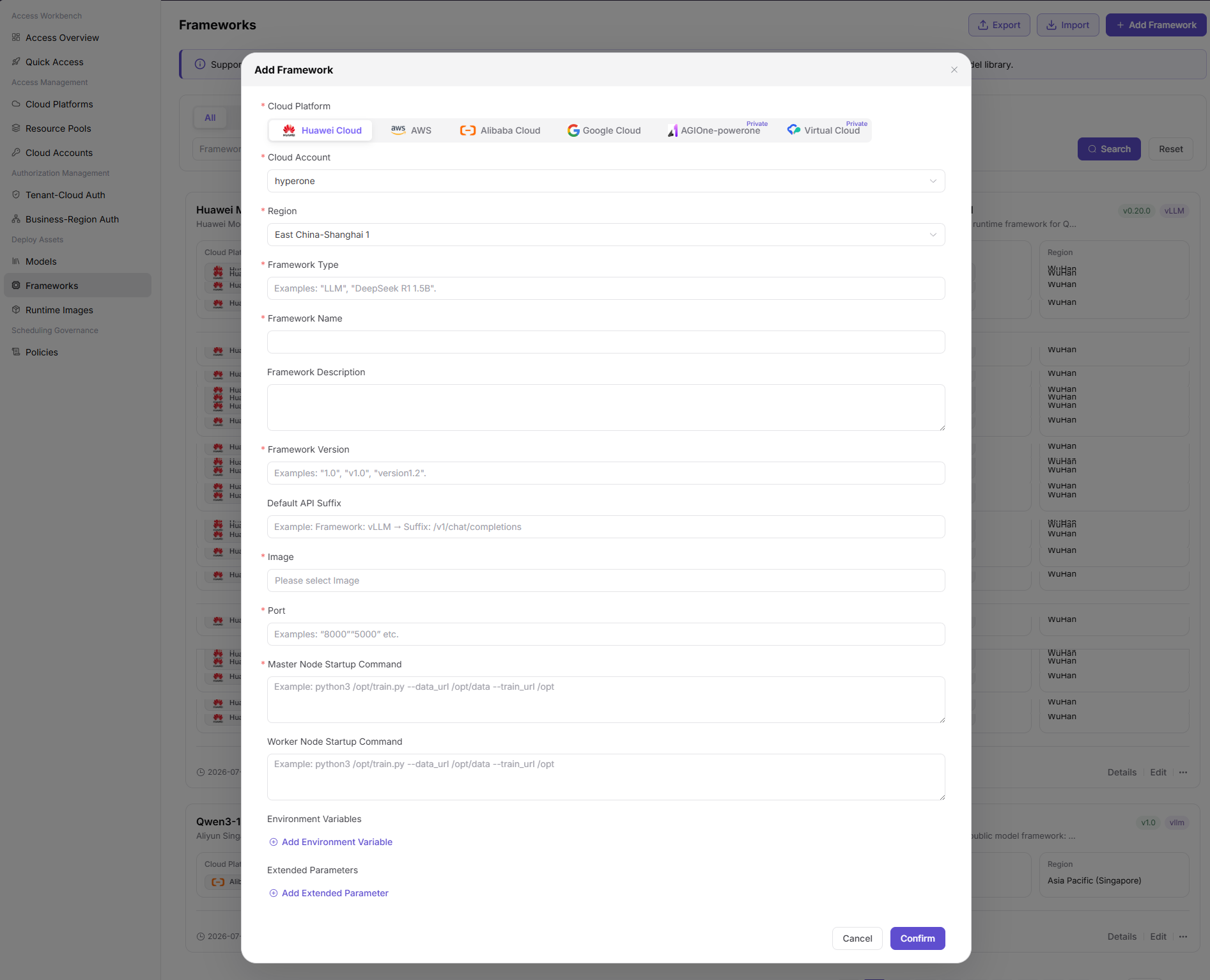

2. Select Add Framework.

3. Complete Basic Information:
   • Framework Icon: upload a JPG, PNG, or SVG file no larger than 1 MB; 64 x 64 is recommended.
   • Framework Name: maintain Simplified Chinese and English values separately.
   • Framework Type: select at least one type, such as vllm, tgi, sglang, ollama, asr, tts, sdk-stable-diffusion, or comfyui.
   • Framework Description: maintain optional localized rich-text descriptions.
4. Complete Runtime Environment:
   • Image: select the validated runtime image and confirm its version.
   • Port: enter the service port exposed by the framework, such as 8000.
   • Startup Command: maintain one or more protocol and command entries, such as --port 8000 --model {model_name} --trust-remote-code.
5. Select Save. Select Cancel to discard the form.

Parameters - Basic Information

Field	Type	Example	Description
Framework Icon	Upload	-	Required; JPG, PNG, or SVG, no larger than 1 MB; 64 x 64 recommended
Framework Name	Text	vllm in both language tabs	Required; maintain each language independently
Framework Type	Multi-select	vllm, tgi, sglang	Required; select at least one type
Framework Description	Rich text	-	Optional localized description

Parameters - Runtime Environment

Field	Type	Example	Description
Image	Single select	registry.example.com/ai/vllm:0.9.1	Required; select from the validated image list
Port	Number	8000	Required; service port exposed by the framework
Startup Command	List	--port 8000 --model {model_name} --trust-remote-code	Required; supports multiple command entries

Completion Checklist

Purpose: These are the exit criteria for this task. If any check fails, follow the troubleshooting section before continuing.

Check	Pass Criteria
1	Image, framework type, startup command, and port are compatible.
2	Service health and API behavior can be validated.
3	Model-asset configuration can select the framework.

Troubleshooting

Symptom	Check First
Framework fails to start	Image compatibility, command parameters, model path, and port
Model asset cannot select the framework	Framework state, framework type, and target-cloud compatibility

User Manual

Review complete fields, validation rules, and troubleshooting for Inference Frameworks
