Cloud Model Assets

This task combines a meta-model, cloud deployment point, cloud model, compute plan, and output protocol into a deployable model asset.

Target Outcome

End Users can select the model in quick deployment and obtain the correct API definition after deployment.

Applicable Roles

• Platform Operator

Before You Start

• Meta-model, cloud account, cloud region, runtime image, and inference framework are prepared.
• Cloud-model identifier, compatible compute plan, and output protocol are confirmed.

Procedure

Add a Model Asset

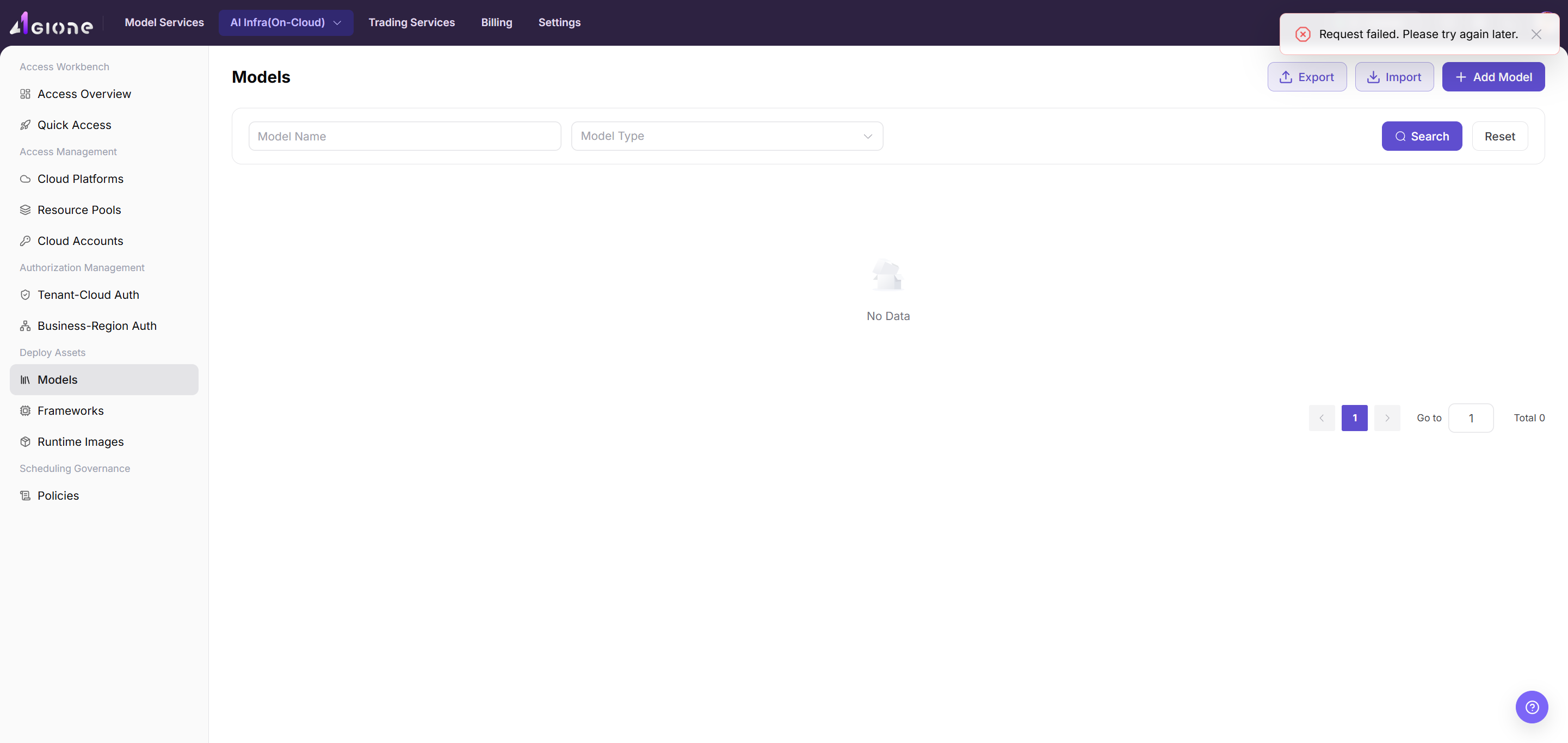

1. Go to Deploy Assets > Model Library.
2. Select Add Model to start the three-step workflow.

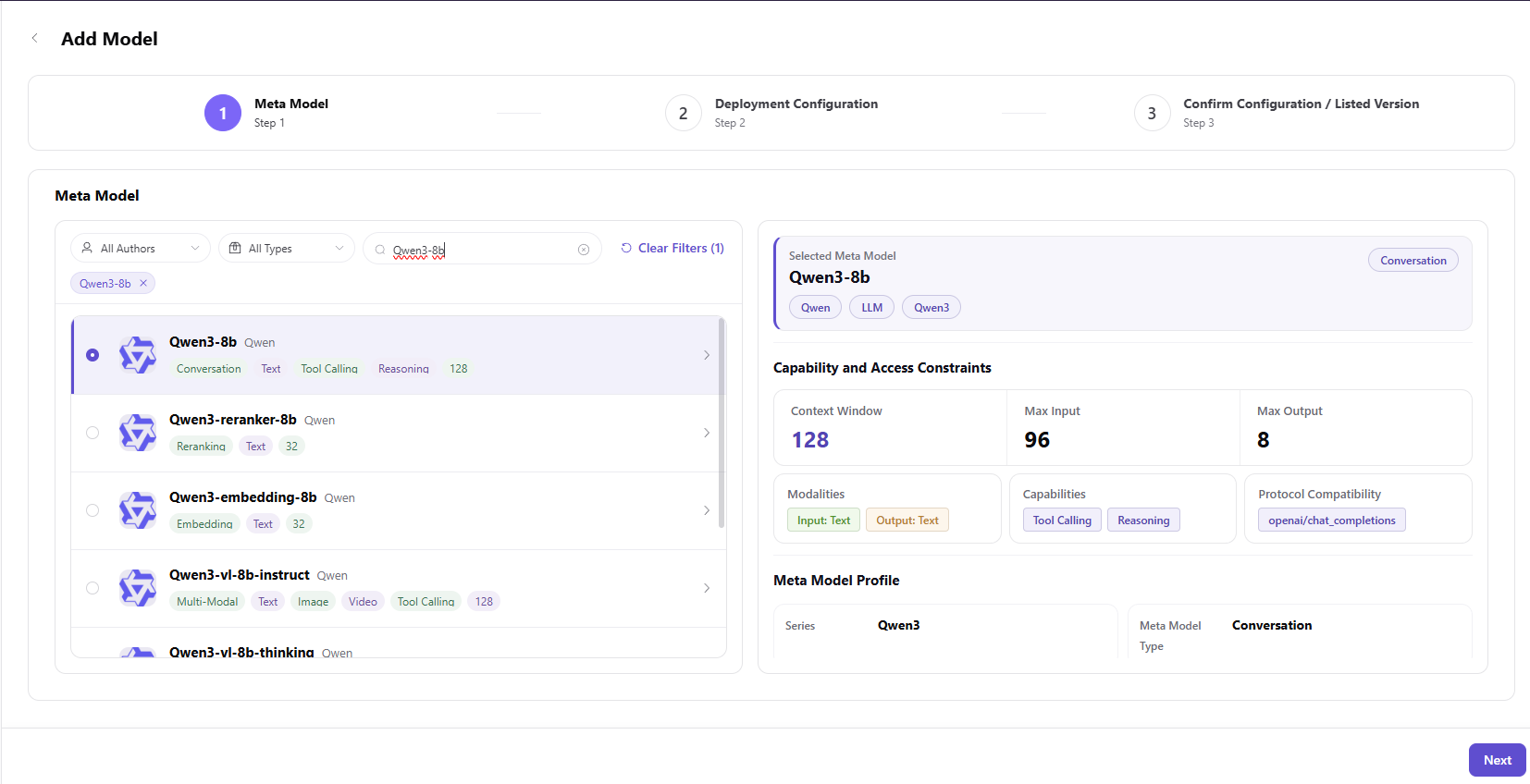

3. Step 1 - Meta-Model and Listed Version:
   • Filter by author, type, or keyword and select the target meta-model.
   • Review modalities, currently available capability metadata, token limits, compatible protocols, model family, author, subtype, and description.
   • Enter the listed version, such as 1.0.0, and an optional version description.
   • Select Next.

4. Step 2 - Deployment Configuration:

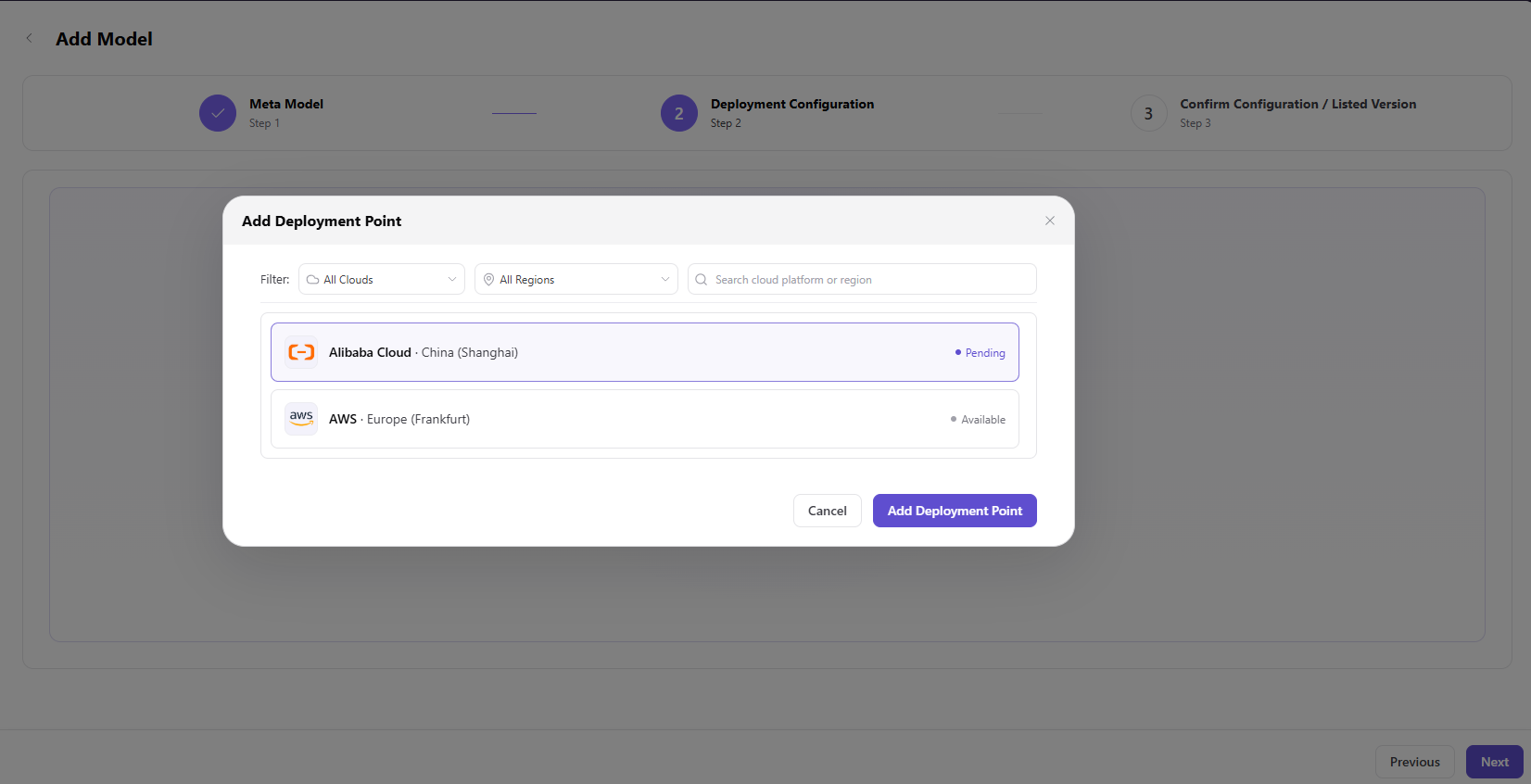

   • Add a cloud deployment point that binds one cloud platform and region.

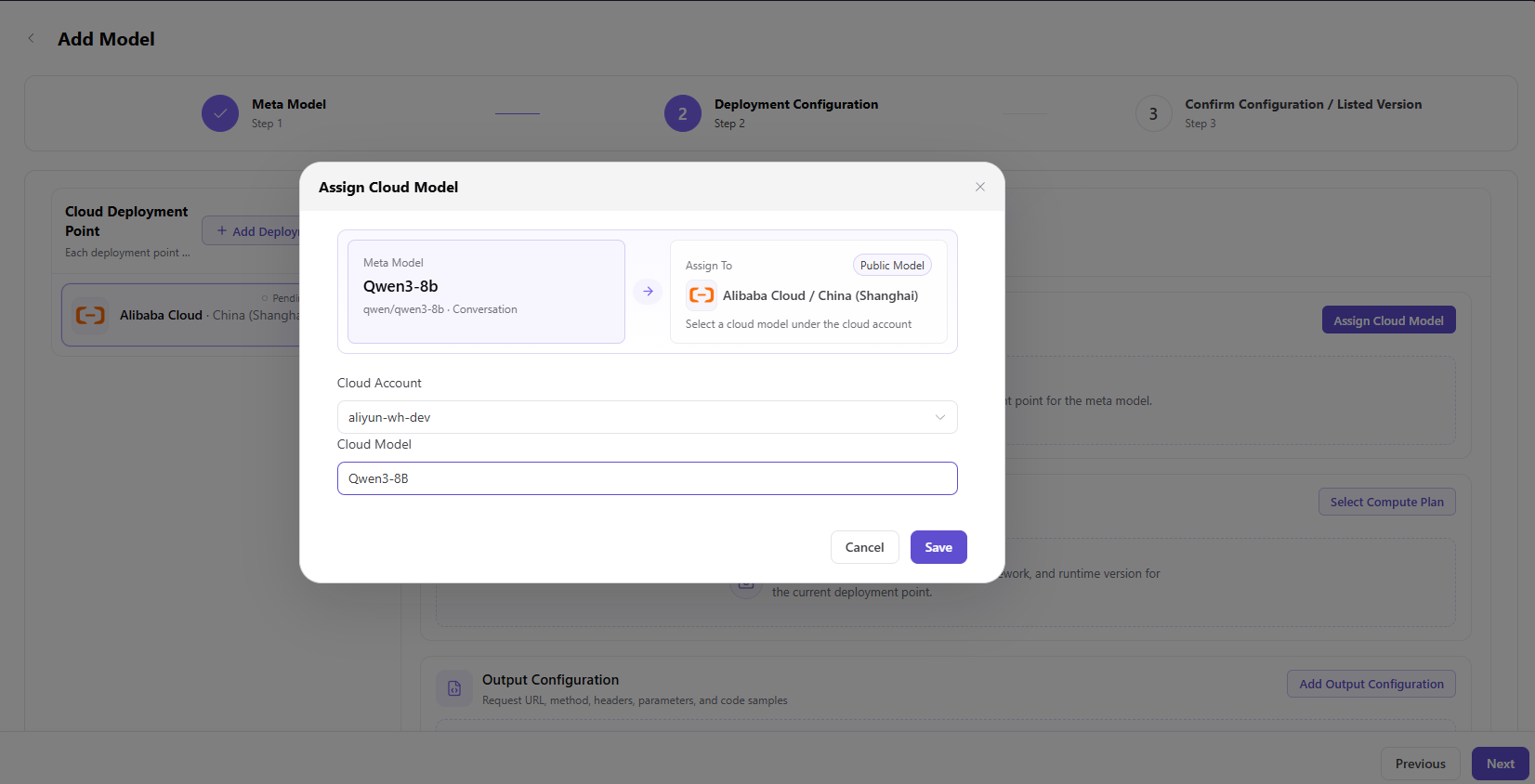

• Assign the cloud model under the intended cloud account and save it.

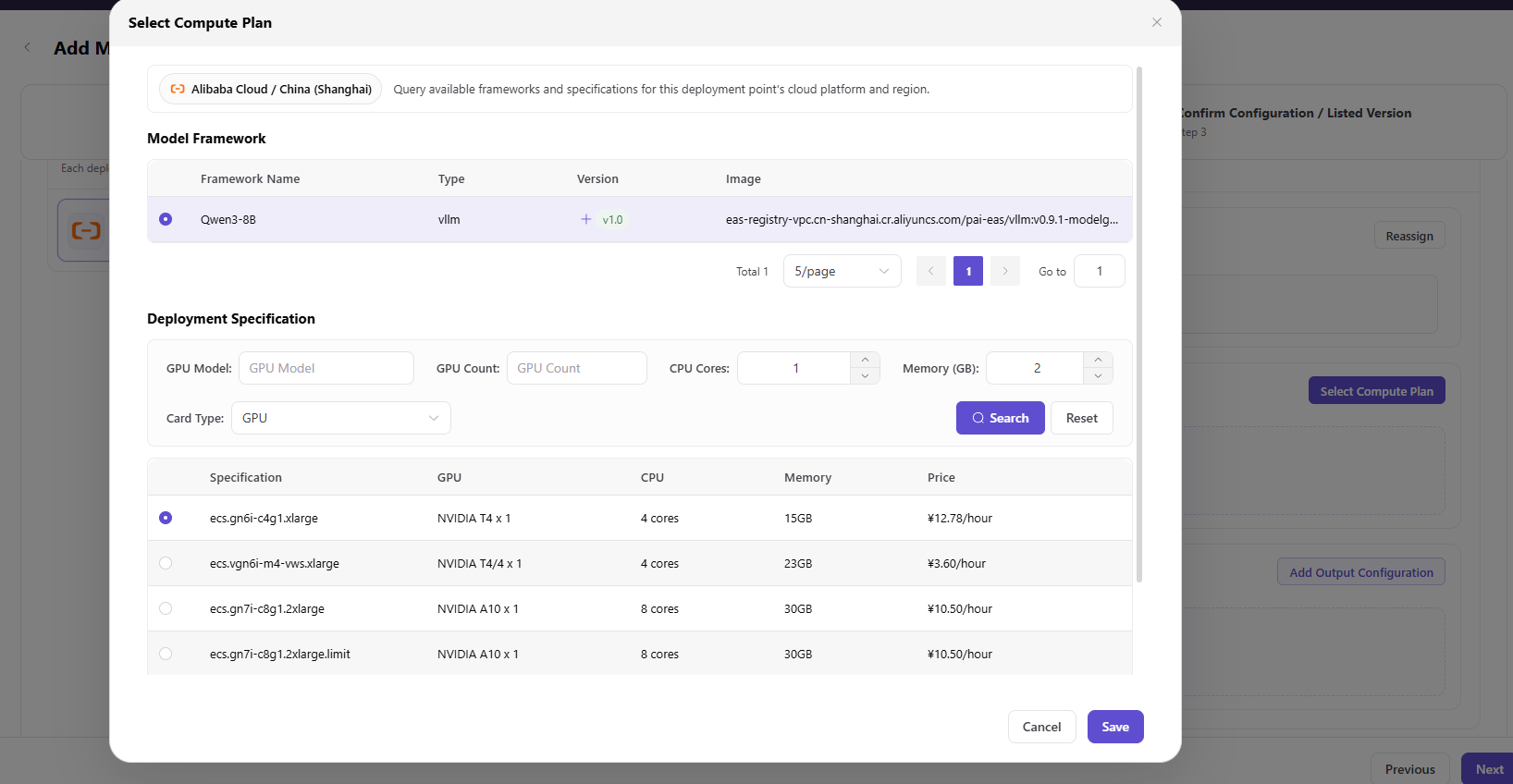

• Select a compatible model framework and compute plan, then save it.

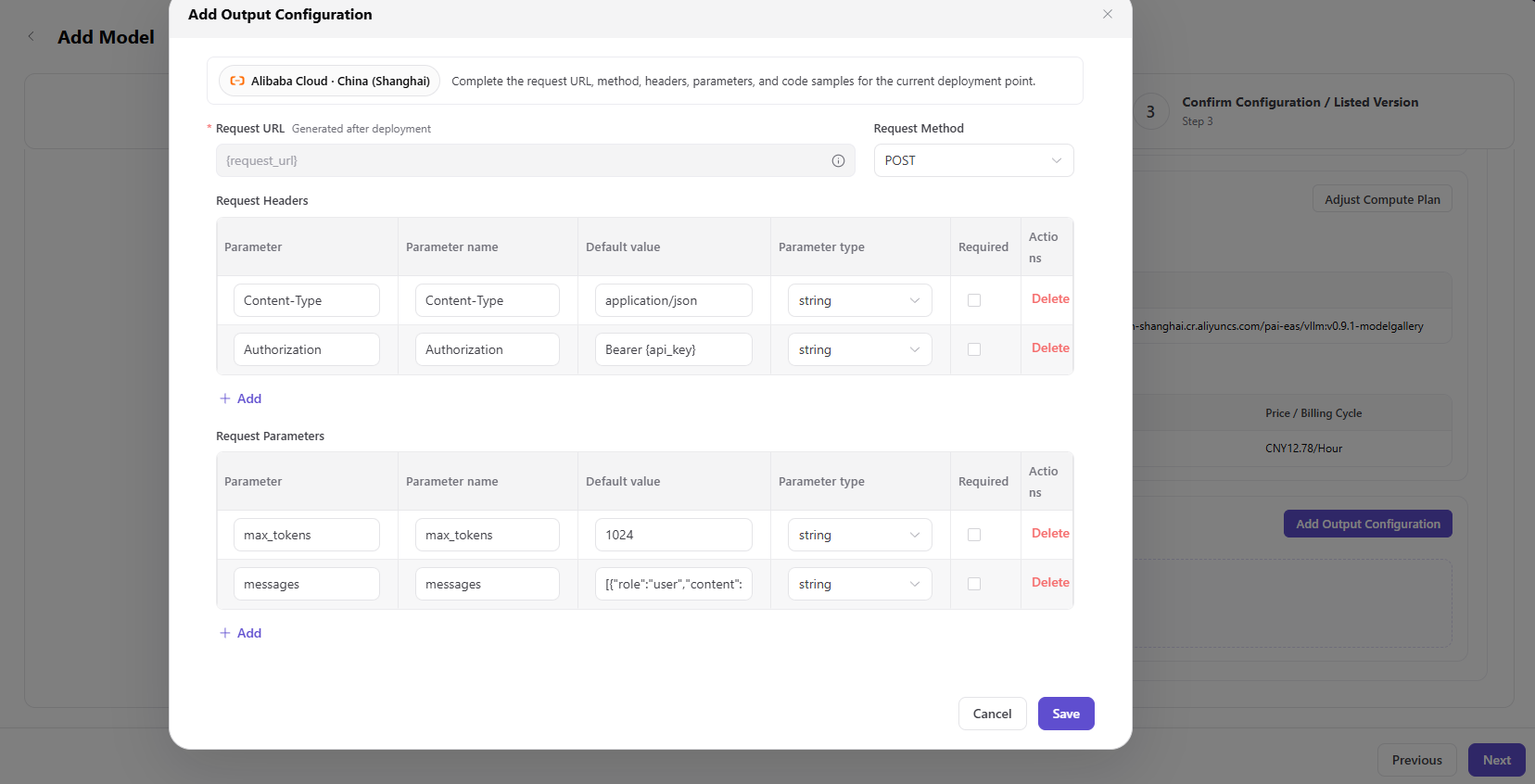

• Configure request URL placeholders, method, headers, request parameters, output fields, and localized code examples. Use placeholders instead of real credentials.

• Select Next.

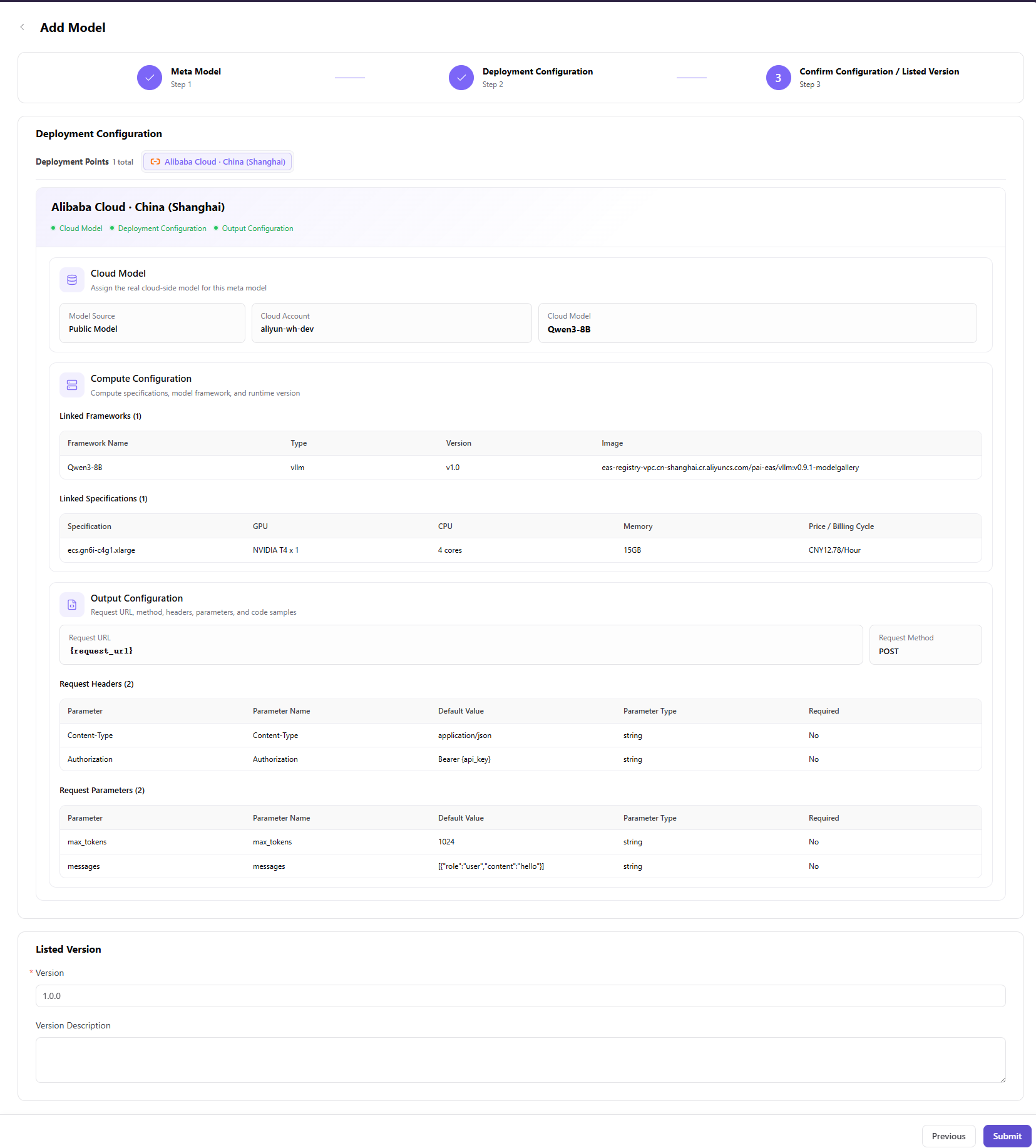

5. Step 3 - Confirm Configuration: review meta-model information, capability and access constraints, cloud model, compute plan, and output configuration. Select Submit, or return to a previous step to correct the configuration.

Parameters - Meta-Model and Listed Version (Step 1)

Field	Type	Example	Description
Meta-Model	Single select	Qwen3-8b with identifier qwen/qwen3-8b	Required; canonical base-model definition
Listed Version	Text	1.0.0	Required; asset version exposed to deployment
Version Description	Rich text	-	Optional version-change description

Parameters - Deployment Configuration (Step 2)

Field	Type	Example	Description
Cloud Deployment Point	List	Alibaba Cloud - China East 2	Required; binds one cloud platform and region
Cloud Account	Select	aliyun-dev	Required; cloud account used by the deployment
Cloud Model	Select	Qwen3-8B	Required; cloud model mapped under the account
Model Framework	Single select	Qwen3-8B / vllm / v1.0	Required; framework and runtime version
Compute Plan	Single select	NVIDIA T4 x 1 / 4 vCPU / 15 GB	Required; accelerator, count, CPU, and memory
Request URL	URL	{request_url}	Required; generated after deployment
Request Method	Select	POST	Required; HTTP method
Content-Type Header	Text	application/json	Required; request content type
Authorization Header	Text	Bearer {api_key}	Required; placeholder authentication value
max_tokens	Number	1024	Required when used by the selected protocol
messages	Array	[{"role":"user","content":"hello"}]	Required conversation request content

Completion Checklist

Purpose: These are the exit criteria for this task. If any check fails, follow the troubleshooting section before continuing.

Check	Pass Criteria
1	Meta-model, deployment point, cloud model, and compute plan are compatible.
2	Output protocol and examples contain placeholders rather than real credentials.
3	End Users can see and select the asset in quick deployment.

Troubleshooting

Symptom	Check First
Deployment point has no model or plan	Cloud-account synchronization, region, model availability, and plan compatibility
End User cannot see the model asset	Asset state, tenant authorization, business-region authorization, and publication scope

User Manual

Review complete fields, validation rules, and troubleshooting for Model Assets
