Models

Feature Overview

Item	Content
Applicable Roles	Operators
Navigation Path	AI Infra(On-Cloud) > Deploy Assets > Models
Page Route	/infrahub/op/model/model
Managed Objects	Model-library records, meta-models, deployment targets, and cloud-model configuration

Beginner Explanation

Models is the catalog of deployable model assets. Each record combines meta-model capability, cloud deployment targets, compute plans, and output configuration for policies and Quick Deployment.

Terminology

Term	Description
Meta-model	A base definition of model capability, modality, and protocol.
Deployment Target	A cloud platform and region where the model can run.
Compute Plan	A resource-flavor combination used for model deployment.

Recommended Operation Order

Review existing details, add a model, select the meta-model, deployment target, cloud model, compute plan, and output configuration in order, then submit and validate downstream availability.

Beginner Checklist

Scenario	Do First	Do Not Do Directly
First visit	Review existing objects, states, and available actions	Change an unknown object
Before a change	Verify upstream dependencies, impact scope, and target object	Skip dependency and impact checks
After completion	Validate the current and downstream pages with Result Validation	Rely only on a success message
Page error	Record the redacted object, time, and page message	Submit repeatedly or record real credentials

Prerequisites

1. The current account has the permission required for Models.
2. The meta-model, cloud platform, resource pool, and inference framework are ready.
3. Before adding or changing a model, confirm regions, resource cost, and policy references.

Page Description

The page lists model-library records with details and an Add Model entry.

Page screenshots:

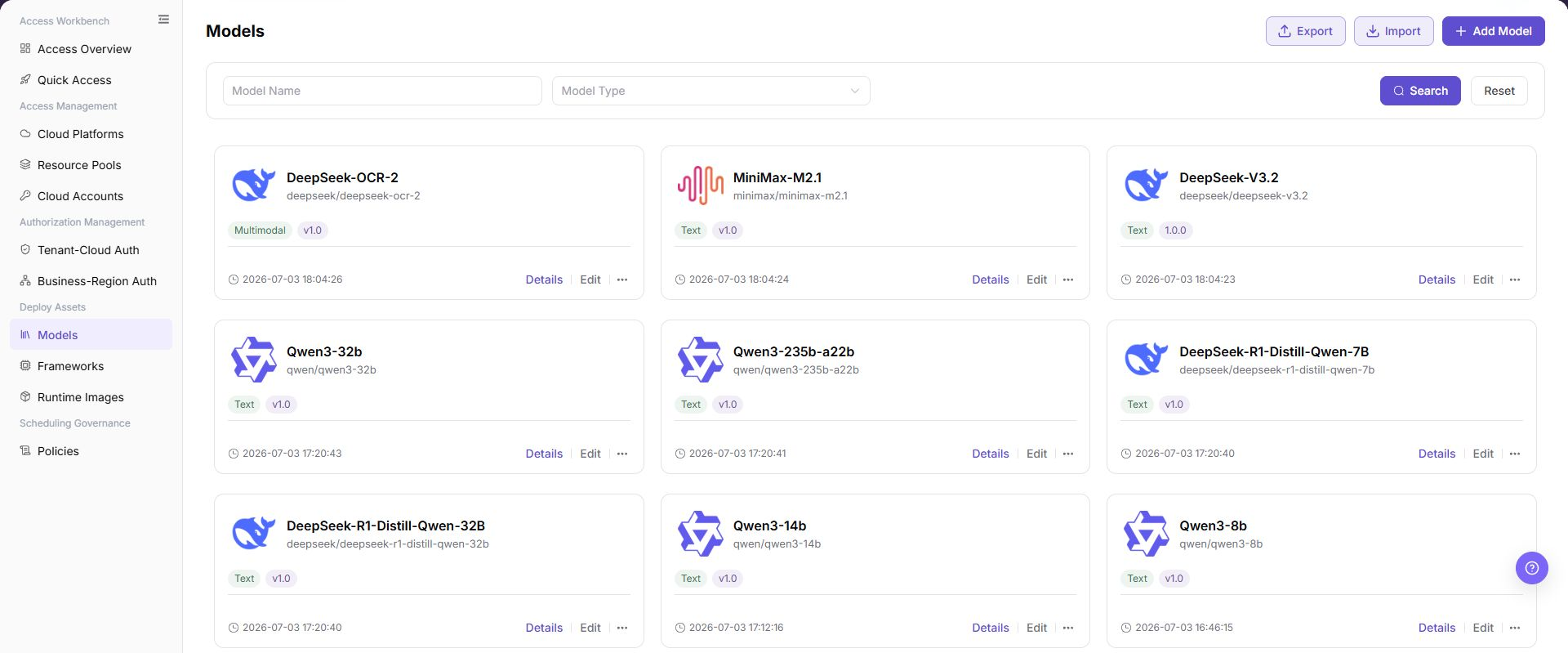

The image shows the Models management page, displaying managed meta-model cards, model series, publish status, and associated deployment targets, along with the Add Model button.

Main Operations

View Model Details

1. Locate the target model record.
2. Click the model name or "Details".
3. Verify the meta-model, deployment target, framework version, compute plan, and state.

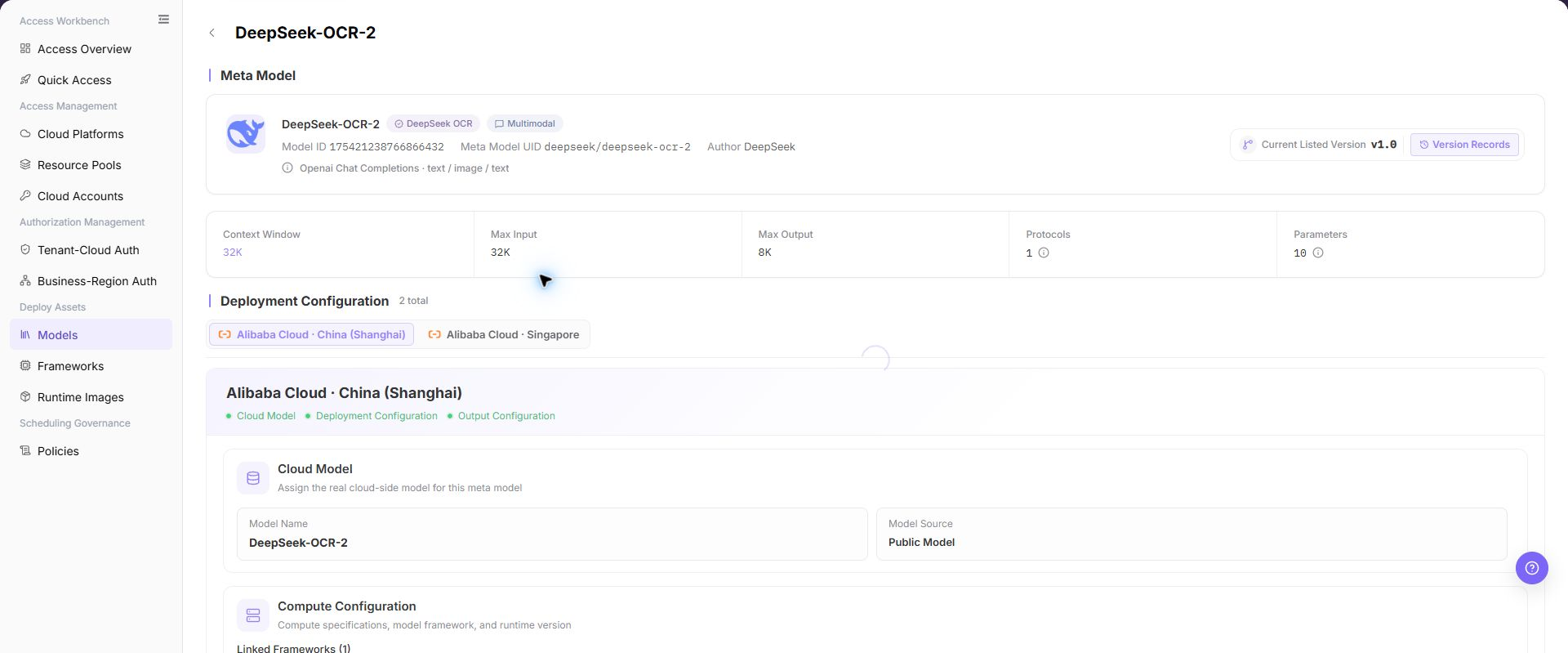

The image shows the Model Details drawer, displaying basic meta-model information, configured cloud deployment targets, compute plans, inference framework versions, and health probe states.

Add Model

Step 1: Select Meta-Model

1. Click "Add Model" in the upper right of the Models page to enter the configuration wizard.
2. Search for the target base model (such as Qwen3-8b) by author, type, or keyword, and verify the context window, maximum input/output constraints, and protocol compatibility on the right.
3. After selection, click "Next".

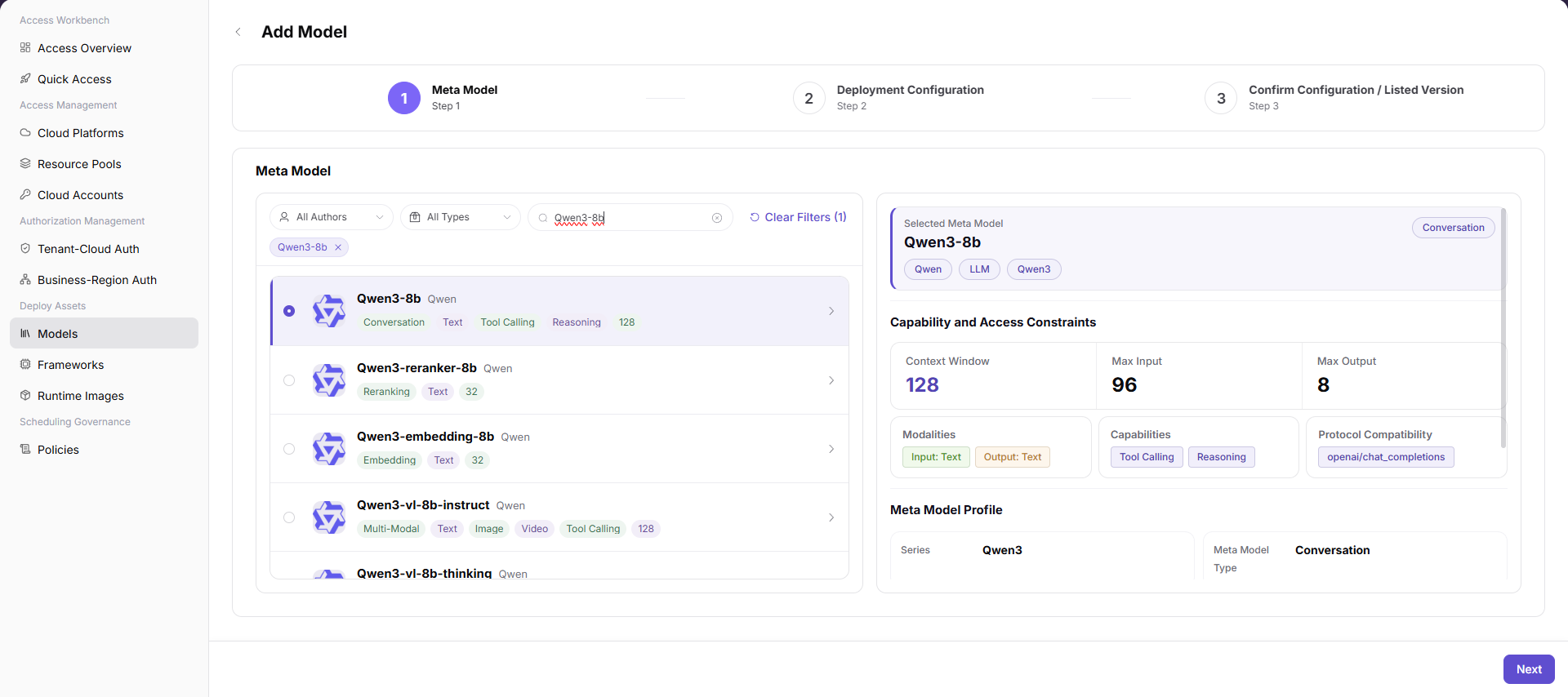

The image shows "Add Model - Step 1: Meta-Model", filtering and selecting the target foundation model while displaying its parameters and capability constraints on the right.

Step 2: Configure Deployment Target and Compute

1. In the deployment configuration step, click "Add Deployment Target".
2. Select the target cloud platform (such as Alibaba Cloud) and an enabled regional resource pool.

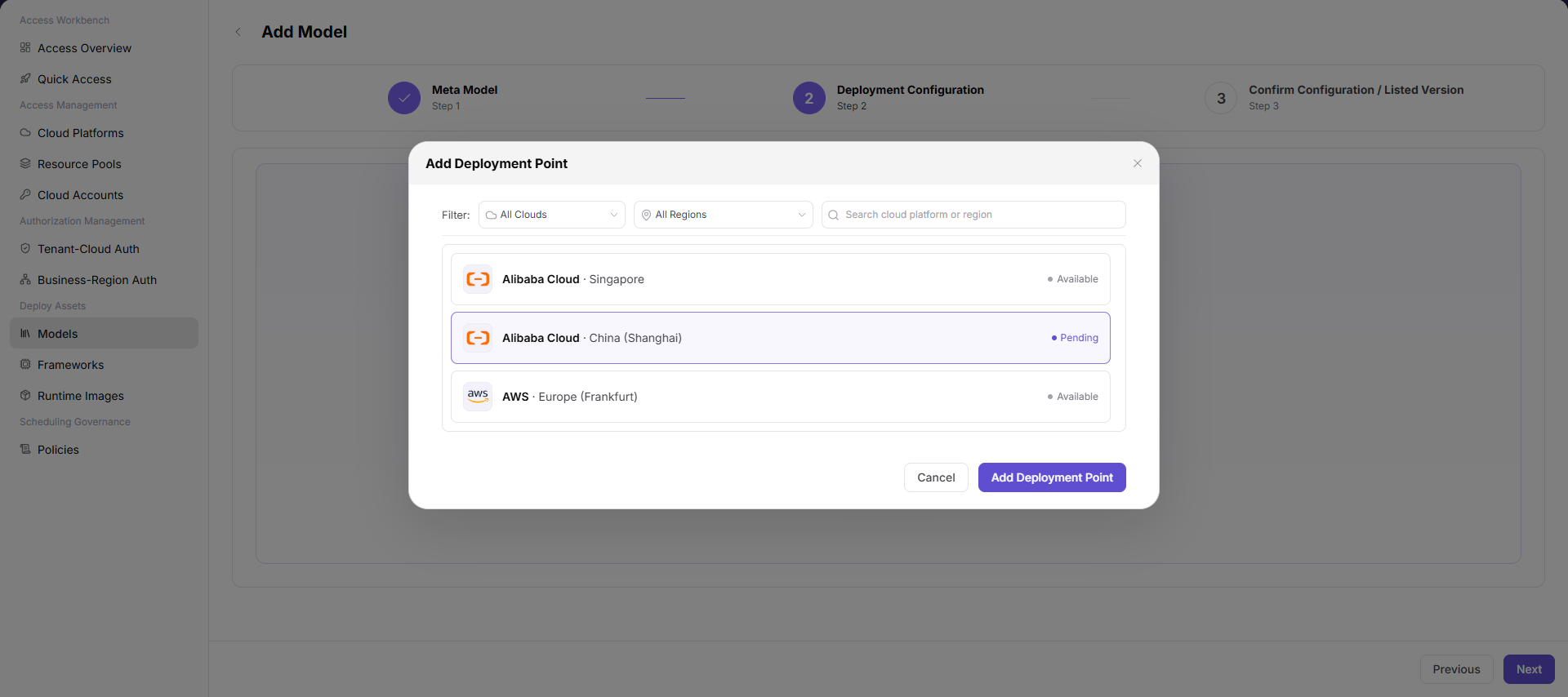

The image shows clicking "Add Deployment Target" in Step 2 to select the cloud platform and available region.

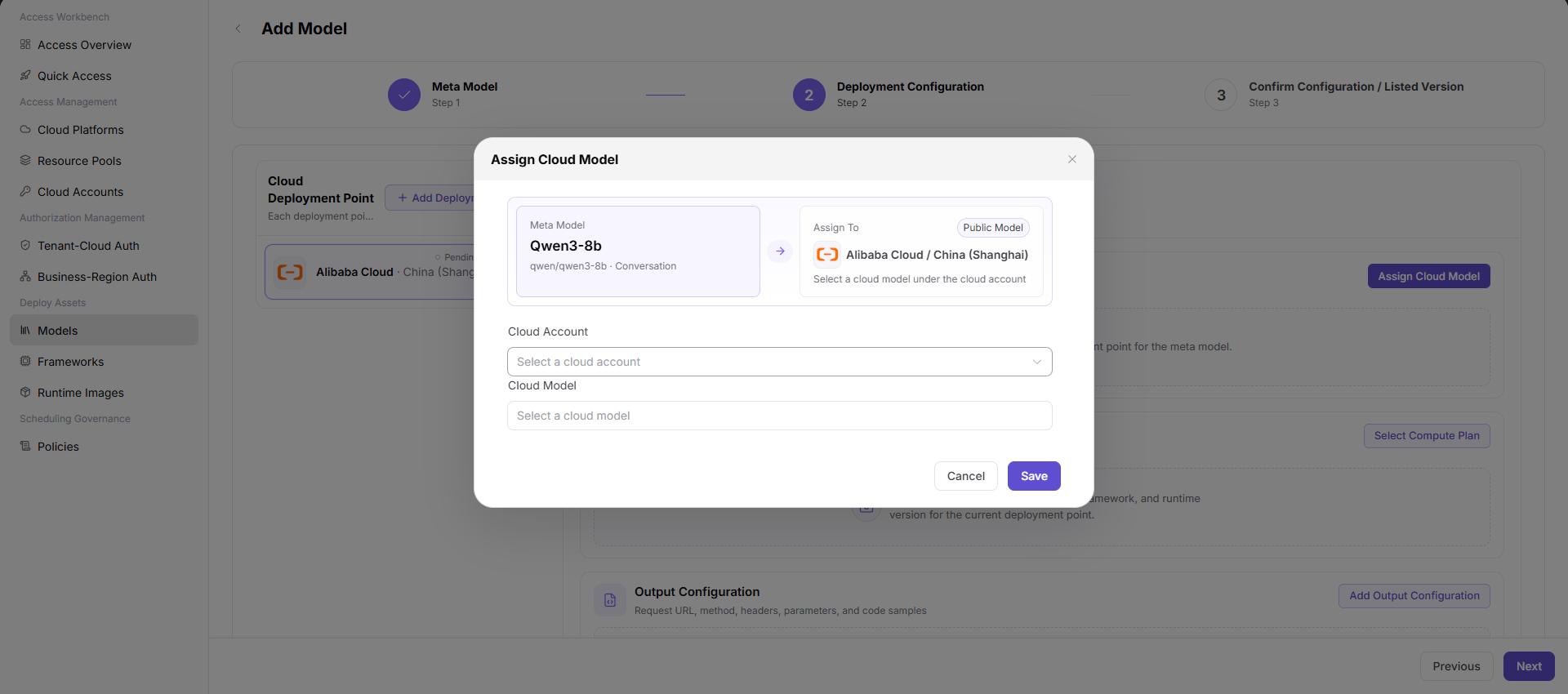

3. Select a cloud preset model or specify a custom model identifier.

The image shows specifying the cloud provider model identifier or version for the deployment target.

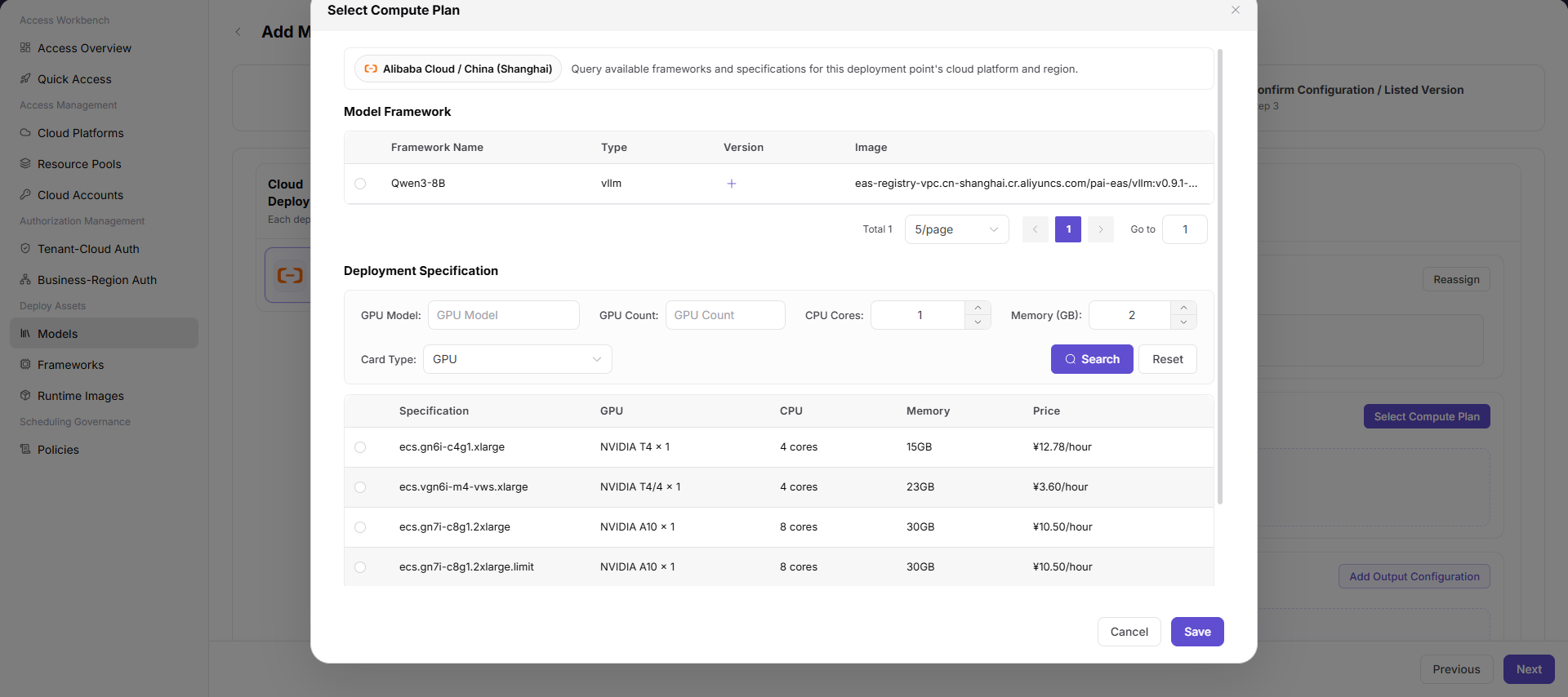

4. Select the compute plan specifications and associate the compatible inference framework version.

The image shows selecting compute plan specifications and compatible inference framework versions for the deployment target.

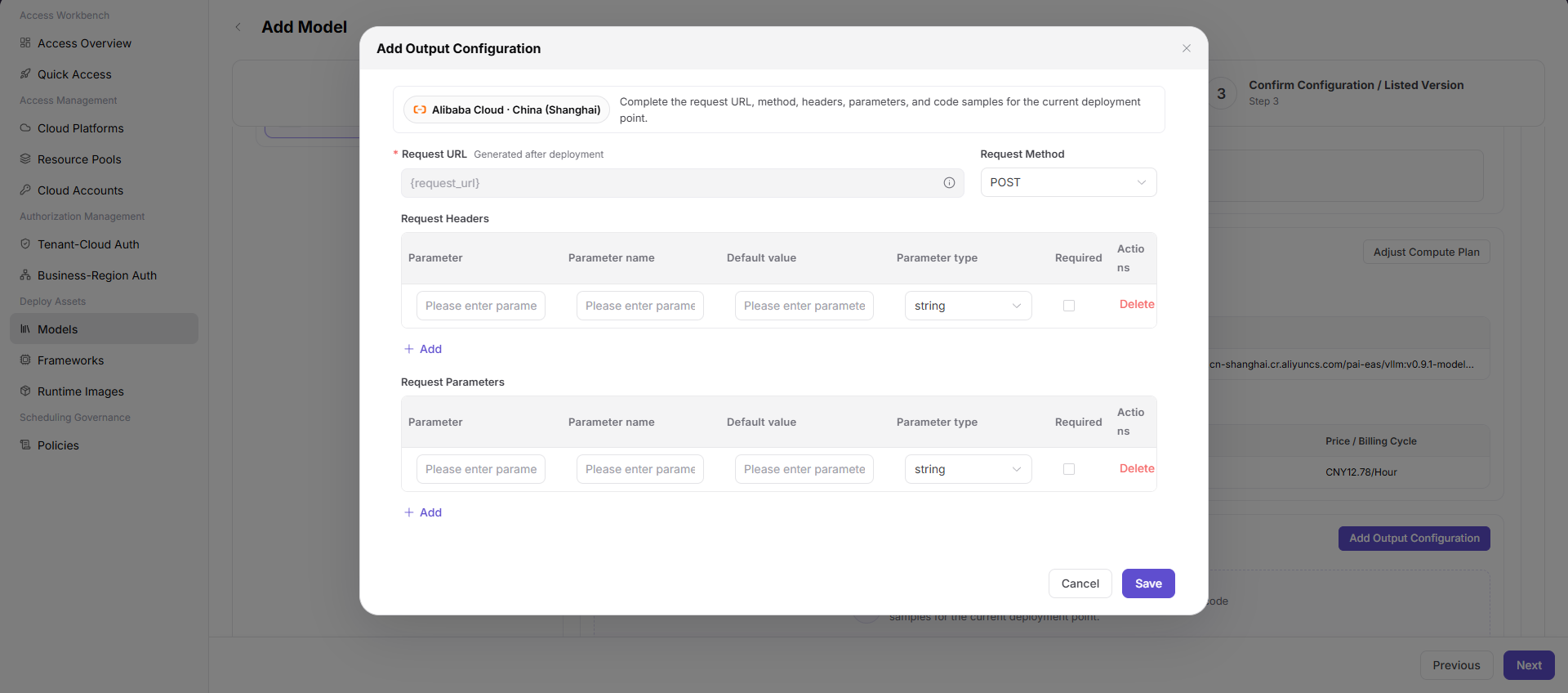

5. Add output configuration as needed, specifying listening ports, timeout thresholds, and related parameters.

The image shows configuring the deployment target's output parameters and communication protocol settings.

Step 3: Confirm Configuration and Submit

1. Proceed to Step 3 to review the summary information for the meta-model, multi-cloud deployment targets, compute plans, and framework versions.
2. Confirm the settings and click "Submit" (or "Publish Version") to complete model onboarding.
3. After submission, return to the Models list and verify that the new model is available.

The image shows "Add Model - Step 3: Confirm Configuration / Publish Version", performing final verification of multi-cloud deployment targets and parameters before submitting.

Parameter Reference

Field Name	Required	Field Type	Example	Description
Model Name	Yes	Text	Sample Model	Model name displayed in the Models list and details.
Model Type	No	Dropdown/Tag	Conversation	Used to filter or identify the model capability type.
Meta Model	Yes	Single select	Sample Meta Model	Base model definition selected in the first add model step.
Cloud Deployment Point	Yes	List/Selection	Sample Cloud - Sample Region	Each deployment point binds one cloud platform and region.
Cloud Account	Conditionally required	Dropdown	Sample Cloud Account	Cloud account selected when assigning a cloud model.
Cloud Model	Conditionally required	Dropdown	Sample Cloud Model	Cloud-side model that can be bound to the current model.
Model Framework	Yes	Single select/Table	Sample Framework	Framework that can run the model.
Type	No	Text	vllm	Model framework type.
Version	No	Text	v1.0	Framework or model version.
Image	Yes	Text	<BASE_URL>/runtime:tag	Runtime image address. Use placeholders only in documentation.
GPU Model	No	Text	Sample GPU	Used to filter deployment specifications.
GPU Count	No	Number	1	Used to filter deployment specifications.
CPU Cores	No	Number	4	CPU configuration in a deployment specification.
Memory (GB)	No	Number	16	Memory configuration in a deployment specification.
Card Type	No	Dropdown	GPU	Card type used when filtering specifications.
Specification	Yes	Single select	example.spec	Actual deployment specification name.
Price / Billing Cycle	No	Text	--	Price or billing cycle shown on the page. Confirm cost impact before configuration.
Request URL	Yes	Text	{request_url}	Generated after deployment. Do not write real internal addresses.
Request Method	Yes	Dropdown	POST	Request method in output configuration.
Request Headers	No	Table	Authorization	Request header configuration. Do not write real credentials.
Request Parameters	No	Table	temperature	Request parameter configuration.
Parameter type	No	Dropdown	string	Type of a request header or request parameter.
Required	No	Checkbox	Yes	Marks whether a parameter is required.
Save	Yes	Button	Save	Saves the current dialog or configuration block.
Next	Yes	Button	Next	Moves to the next configuration step.

Pitfalls

• Do not skip the upstream dependency check: The meta-model, cloud platform, resource pool, and inference framework are ready.
• Confirm impact before a configuration change: Before adding or changing a model, confirm regions, resource cost, and policy references.
• A success message does not prove downstream synchronization. Use Result Validation afterward.
• Use only <API_KEY>, <PERSONAL_KEY>, <ACCESS_KEY_ID>, <ACCESS_KEY_SECRET>, <BASE_URL>, and <ENDPOINT_PATH> for credential and endpoint examples.

Result Validation

Check Item	Success Signal	If Abnormal
Page is accessible	Title, navigation, and main content display correctly	Check role permission and navigation path
Managed objects are visible	Model-library records, meta-models, deployment targets, and cloud-model configuration display as expected	Clear filters and verify upstream dependencies
Operation result is saved	The expected state or new record appears	Review page messages, required fields, and dependencies
Downstream result is consistent	Associated pages show the change	Wait for synchronization, refresh, and return to the responsible object

FAQ

Target Object Is Missing in Models

Symptom:

The expected object is missing from the list or selector.

Possible Causes:

• Active query criteria filter out the target object.
• An upstream object is disabled, or the current role lacks visibility.

Resolution:

1. Clear filters and refresh the page.
2. Verify the prerequisite object: The meta-model, cloud platform, resource pool, and inference framework are ready.
3. Confirm the current role and data scope, then locate the object again.

Models Action Is Unavailable

Symptom:

An expected button, menu, or state switch is unavailable.

Possible Causes:

• The current account lacks the required action permission.
• Object state, references, or prerequisites block the action.

Resolution:

1. Verify the permission for the action and the current object state.
2. Check references and prerequisites identified by the page message.
3. Remove the blocker, refresh the page, and perform the action once.

Models Change Does Not Reach Downstream

Symptom:

The page reports success, but a downstream page still shows the old state.

Possible Causes:

• An associated page has stale cache or synchronization delay.
• The current and downstream pages use different roles, tenants, or data scopes.

Resolution:

1. Wait for synchronization and refresh both pages.
2. Confirm that both pages use the same role, tenant, and object scope.
3. If they still differ, return to the responsible object and verify the saved result.

Models Data Differs from Another Page

Symptom:

Counts or states differ from an associated page.

Possible Causes:

• The pages use different filters, aggregation rules, or update times.
• The change is still synchronizing, or role-based data scopes differ.

Resolution:

1. Align filters and aggregation rules on both pages.
2. Check update times and wait for synchronization.
3. Compare object details instead of summary counts only.

How to Troubleshoot a Models Failure

Symptom:

Submission fails or the state does not change for an extended period.

Possible Causes:

• Required fields, field combinations, or object state do not meet submission rules.
• An upstream dependency is invalid, the request failed, or the same action is already processing.

Resolution:

1. Record the redacted object, time, and complete page message.
2. Verify required fields, object state, and upstream dependencies.
3. Confirm that no identical job is processing before one retry.

Notes

• Before adding or changing a model, confirm regions, resource cost, and policy references.
• Do not put real accounts, credentials, internal locations, or customer data in documentation, screenshots, tickets, or chat records.
• Authorization, deployment, deletion, publication, state, or billing changes require an auditable record and recovery plan.

Next Steps

1. Review deployment points, compute plan, and output configuration on the model details page.
2. Configure or check Tenant-Cloud Auth and Business-Region Auth.
3. Validate from the user perspective that the model can be selected in quick access or deployment flows.
