Policies

Feature Overview

Item	Content
Applicable Roles	Operators
Navigation Path	AI Infra(On-Cloud) > Scheduling Governance > Policies
Page Route	/infrahub/op/schedule/policy
Managed Objects	Application scenarios, associated models, primary/backup routes, and health probes

Beginner Explanation

Policies defines traffic rules for model deployment. It connects a model to primary and backup targets and uses health probes to determine routing.

Terminology

Term	Description
Application Scenario	A scheduling objective such as cost priority, high availability, or low latency.
Primary/Backup Route	The topology between primary and backup deployment targets.
Health Probe	A rule that determines whether a target can continue receiving requests.

Recommended Operation Order

Confirm the model and targets, create a policy, complete basic information, route topology, and health probes, then validate policy state and routing.

Beginner Checklist

Scenario	Do First	Do Not Do Directly
First visit	Review existing objects, states, and available actions	Change an unknown object
Before a change	Verify upstream dependencies, impact scope, and target object	Skip dependency and impact checks
After completion	Validate the current and downstream pages with Result Validation	Rely only on a success message
Page error	Record the redacted object, time, and page message	Submit repeatedly or record real credentials

Prerequisites

1. The current account has the permission required for Policies.
2. The associated model has at least one available deployment target, with confirmed framework version and resource flavor.
3. Before changing a policy, assess live routing, capacity, cost, and failover impact.

Page Description

The page lists policies and provides a three-step creation flow.

Page screenshots:

The image shows the Policies management page, displaying multi-cloud routing policy cards, scenario types, primary/backup topology, and runtime status, with an Add Policy button.

Main Operations

Create Policy

Step 1: Basic Information and Model Association

1. Click "Add Policy" on the Policies page.
2. Enter the policy name and select an application scenario (such as "Cost Priority", "High-Availability Production", or "Ultra-Fast Inference").
3. Select the target model and version (such as Qwen3-8b / v1.0), which automatically populates the available routing node resources across cloud platforms below.
4. Enter the description and click "Next".

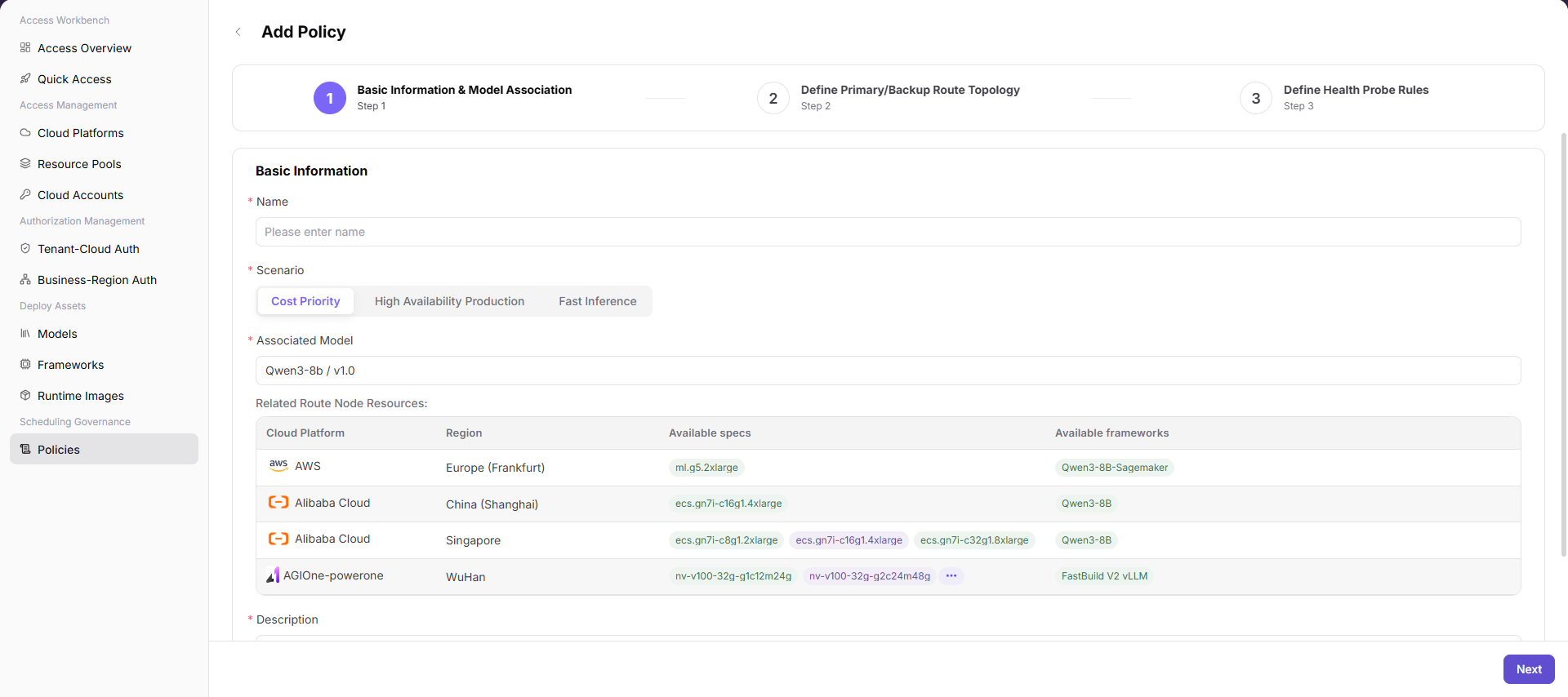

The image shows "Add Policy - Step 1: Basic Information and Model Association", entering policy name, scenario, and associated model while displaying available cloud nodes.

Step 2: Define Primary and Backup Route Topology

1. In the routing configuration, select primary and backup route nodes based on multi-cloud resource specifications and costs.
2. Configure priority rankings (P1, P2, etc.) for backup route nodes to establish traffic dispatching and failover orders.
3. Review cloud providers, specifications, estimated costs, and inference framework versions for each node, then click "Next".

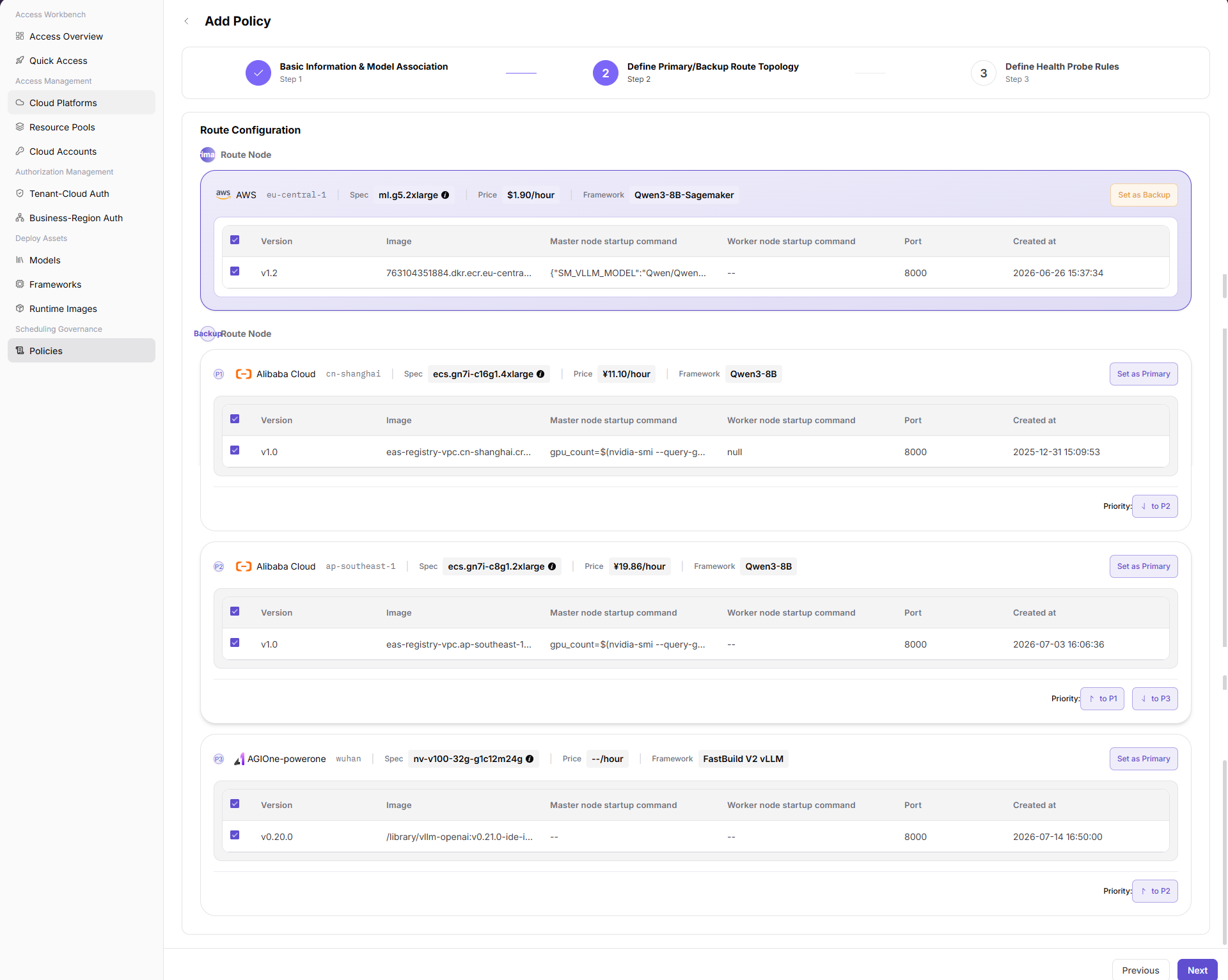

The image shows "Add Policy - Step 2: Define Primary and Backup Route Topology", configuring primary and backup route nodes with priority ranks and failover paths.

Step 3: Define Health Probe Rules

1. Configure health probe parameters for primary and backup nodes, including probe intervals, timeouts, and healthy/unhealthy threshold counts.
2. Specify the probe endpoint path and expected response status codes to ensure unhealthy nodes are promptly evicted and traffic shifted.
3. Confirm the probe rules and click "Submit" to complete policy creation, then verify the new policy in the list.

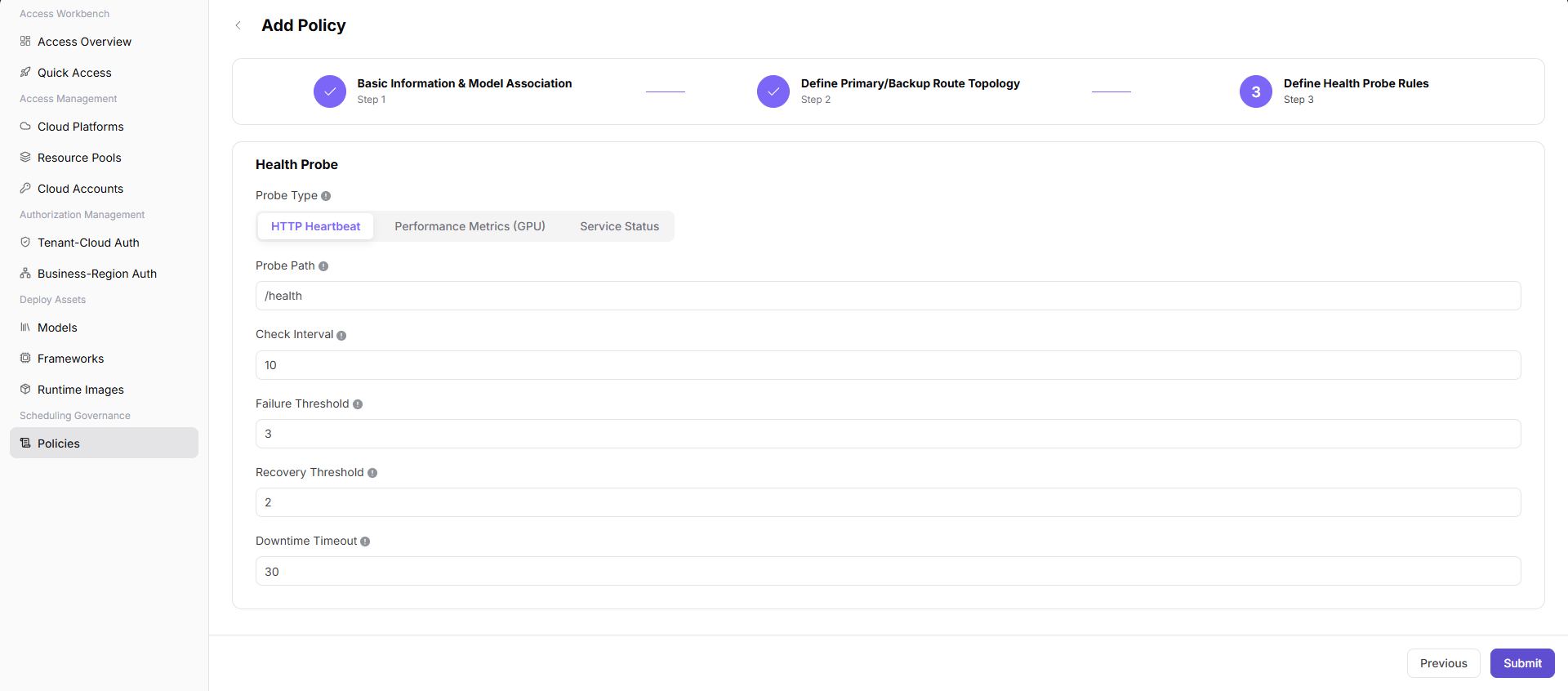

The image shows "Add Policy - Step 3: Define Health Probe Rules", configuring probe intervals, timeouts, and failover threshold rules.

View Policies

1. Locate the target policy in the list.
2. Verify application scenario, associated model, state, and update time.
3. Open details and verify that topology and health probes match deployment targets.

Parameter Reference

Field Name	Required	Field Type	Example	Description
Name	Yes	Text	policy-cost-priority-demo	Policy display name. Use sanitized examples or non-sensitive business-readable names.
Label ID	No	Text	label-demo	List filter field used to search policies by label identifier.
Scenario	Yes	Segmented control	Cost Priority	Selects the policy objective. The page supports cost priority, high availability production, and fast inference.
Associated Model	Yes	Select	Sample Model / v1.0	Selects the model and version bound to the policy.
Cloud Platform	No	Table field	Sample Cloud Platform	Cloud platform to which the related route node resource belongs.
Region	No	Table field	Sample Region	Region where the related route node resource is located.
Available specs	No	Table field	gpu.example	Resource specs available for the current model.
Available frameworks	No	Table field	Sample Framework	Inference frameworks available for the current model.
Description	Yes	Multiline text	Sample policy description	Describes the policy purpose. Do not write real customer, tenant, business, or internal test parameters.
Route Node	Yes	Selection	Primary Route Node	Node selected in route configuration for the policy.
Primary Route	Yes	Operation state	Primary	Route node used first by the policy.
Backup Route	No	Operation state	Backup	Backup route node used when the primary route is unavailable.
Priority	No	Ordering control	P1	Adjusts the priority order of backup routes or candidate nodes.
Spec	No	Display field	gpu.example	Resource spec used by the route node.
Price	No	Display field	Sample price/hour	Cost reference for the route node. Real amount details are not shown in documentation.
Framework	No	Display field	Sample Framework	Inference framework used by the route node.
Version	No	Table field	v1.0	Image or runtime configuration version.
Image	No	Table field	<BASE_URL>/namespace/image:tag	Image address example. Use placeholders only and do not write real registry addresses.
Master node startup command	No	Table field	--model-path /models/example	Master node startup command. Use placeholder examples only.
Worker node startup command	No	Table field	--worker	Worker node startup command. Do not write internal startup parameters.
Port	No	Number	8000	Service listening port.
Created at	No	Date time	2026-07-21 10:00:00	Creation time of the route node or version configuration.
Probe Type	Yes	Segmented control	HTTP Heartbeat	Health probe type. The page supports HTTP heartbeat, GPU performance metrics, and service status.
Probe Path	No	Text	/health	HTTP heartbeat probe path.
Check Interval	No	Number	10	Frequency for running health probes.
Failure Threshold	No	Number	3	Number of consecutive failures before the service is considered abnormal.
Recovery Threshold	No	Number/Rule	2	Rule or threshold for determining service recovery.
Downtime Timeout	No	Number	30	Timeout before the service is judged as down.
Search	No	Button	Search	Queries policy records with the current filters.
Reset	No	Button	Reset	Clears filters and restores the list display.
Export	No	Button	Export	Exports policy records and may contain sensitive operational configuration.
Import	No	Button	Import	Imports policy records in bulk and may change multiple policy configurations.
Batch Delete	No	Button	Batch Delete	Deletes policies in bulk. Confirm the impact scope before using it.
Previous	No	Button	Previous	Returns to the previous configuration step.
Next	No	Button	Next	Validates the current step and moves to the next step.
Submit	Yes	Button	Submit	Final action that submits the policy configuration. Review carefully before clicking.

Pitfalls

• Do not skip the upstream dependency check: The associated model has at least one available deployment target, with confirmed framework version and resource flavor.
• Confirm impact before a configuration change: Before changing a policy, assess live routing, capacity, cost, and failover impact.
• A success message does not prove downstream synchronization. Use Result Validation afterward.
• Use only <API_KEY>, <PERSONAL_KEY>, <ACCESS_KEY_ID>, <ACCESS_KEY_SECRET>, <BASE_URL>, and <ENDPOINT_PATH> for credential and endpoint examples.

Result Validation

Check Item	Success Signal	If Abnormal
Page is accessible	Title, navigation, and main content display correctly	Check role permission and navigation path
Managed objects are visible	Application scenarios, associated models, primary/backup routes, and health probes display as expected	Clear filters and verify upstream dependencies
Operation result is saved	The expected state or new record appears	Review page messages, required fields, and dependencies
Downstream result is consistent	Associated pages show the change	Wait for synchronization, refresh, and return to the responsible object

FAQ

Target Object Is Missing in Policies

Symptom:

The expected object is missing from the list or selector.

Possible Causes:

• Active query criteria filter out the target object.
• An upstream object is disabled, or the current role lacks visibility.

Resolution:

1. Clear filters and refresh the page.
2. Verify the prerequisite object: The associated model has at least one available deployment target, with confirmed framework version and resource flavor.
3. Confirm the current role and data scope, then locate the object again.

Policies Action Is Unavailable

Symptom:

An expected button, menu, or state switch is unavailable.

Possible Causes:

• The current account lacks the required action permission.
• Object state, references, or prerequisites block the action.

Resolution:

1. Verify the permission for the action and the current object state.
2. Check references and prerequisites identified by the page message.
3. Remove the blocker, refresh the page, and perform the action once.

Policies Change Does Not Reach Downstream

Symptom:

The page reports success, but a downstream page still shows the old state.

Possible Causes:

• An associated page has stale cache or synchronization delay.
• The current and downstream pages use different roles, tenants, or data scopes.

Resolution:

1. Wait for synchronization and refresh both pages.
2. Confirm that both pages use the same role, tenant, and object scope.
3. If they still differ, return to the responsible object and verify the saved result.

Policies Data Differs from Another Page

Symptom:

Counts or states differ from an associated page.

Possible Causes:

• The pages use different filters, aggregation rules, or update times.
• The change is still synchronizing, or role-based data scopes differ.

Resolution:

1. Align filters and aggregation rules on both pages.
2. Check update times and wait for synchronization.
3. Compare object details instead of summary counts only.

How to Troubleshoot a Policies Failure

Symptom:

Submission fails or the state does not change for an extended period.

Possible Causes:

• Required fields, field combinations, or object state do not meet submission rules.
• An upstream dependency is invalid, the request failed, or the same action is already processing.

Resolution:

1. Record the redacted object, time, and complete page message.
2. Verify required fields, object state, and upstream dependencies.
3. Confirm that no identical job is processing before one retry.

Notes

• Before changing a policy, assess live routing, capacity, cost, and failover impact.
• Do not put real accounts, credentials, internal locations, or customer data in documentation, screenshots, tickets, or chat records.
• Authorization, deployment, deletion, publication, state, or billing changes require an auditable record and recovery plan.

Next Steps

1. Use a test deployment to validate policy hits, primary/backup routes, and failover behavior.
2. Monitor model service status, latency, cost, and availability affected by the policy.
3. Regularly review health probe thresholds, route priority, and associated model versions.
