Jobs

Feature Overview

Item	Content
Applicable Role	Operator
Navigation Path	AI Infra(On-Prem) > Monitoring > Jobs
Page Route	/powerone/monitor/work
Managed Object	Configuration, status, and relationships on Jobs

Beginner Explanation

Job monitoring is like a task queue and execution list. It shows training, inference, or development task status, queueing reasons, runtime duration, and resource occupation.

Terms

Term	Description
Job Status	Queued, running, succeeded, failed, or canceled.
Queueing Reason	Reason the job cannot start due to insufficient resources, quota limits, or scheduling constraints.
Runtime Duration	Duration from job startup to the current time.

Recommended Operation Order

Confirm prerequisites for Model instances, online IDEs, runtime instances, training tasks, and historical jobs, follow Main Operations, run Result Validation, and continue to the next page.

First-Time User Notes

Confirm that the task involves Configuration, status, and relationships on Jobs, and then follow the recommended order. If fields or state differ from expectations, check prerequisites before continuing downstream.

Prerequisites

1. The current account has job monitoring view permissions.
2. The platform has collected job status, events, queueing, and runtime duration.
3. The target tenant, user, or cluster scope has been clarified.
4. For troubleshooting, job ID or submission time has been prepared.

Page Description

Use this page to inspect model instances, online IDEs, runtime instances, training tasks, and historical jobs.

Job monitoring is used to view job queueing, running status, failure causes, and resource occupation. Operators can use it to analyze insufficient resources, image pull failures, startup exceptions, or long-running tasks.

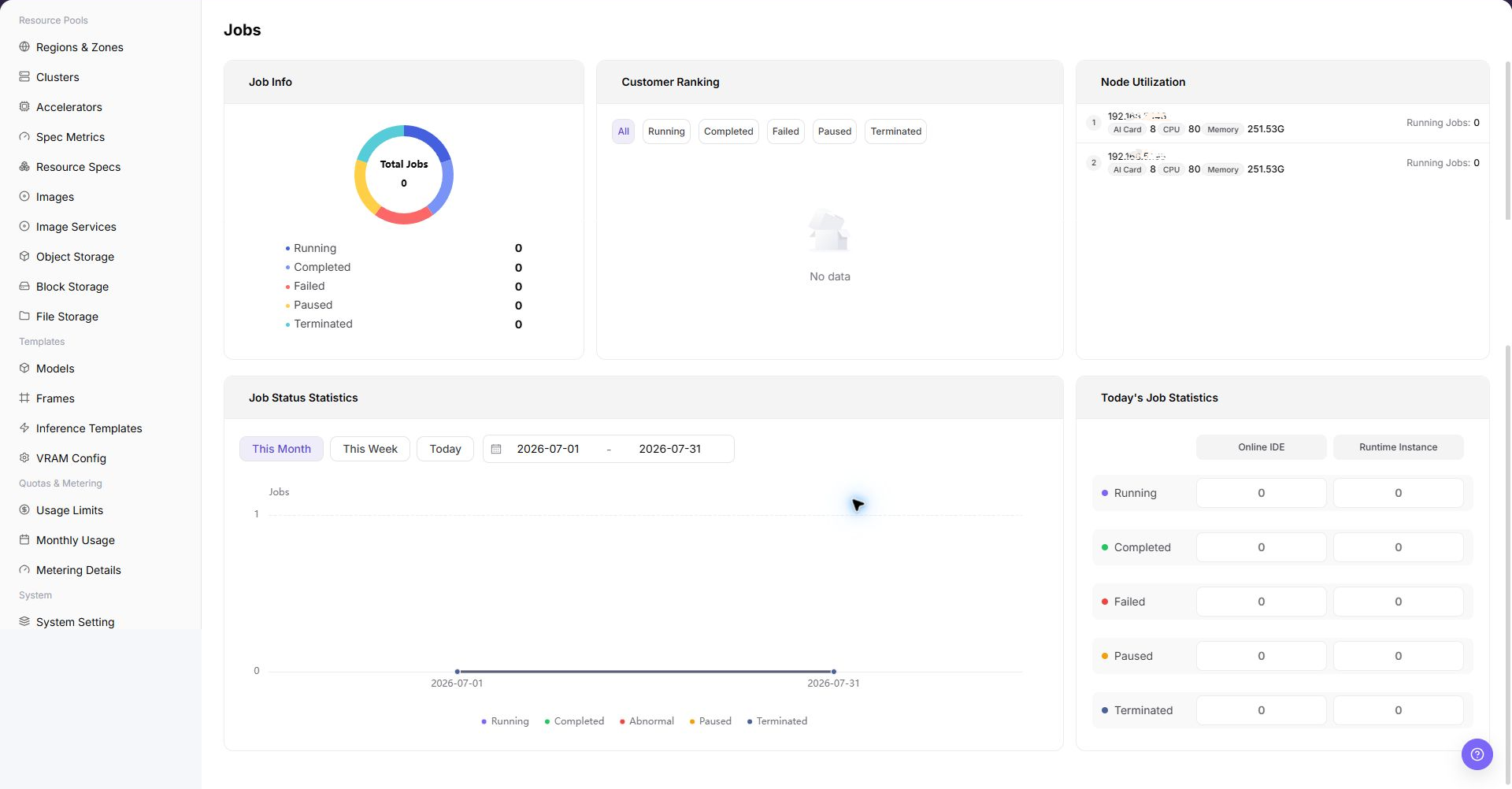

The following figure shows the job monitoring page.

Main Operations

Filter and View Job Monitoring

1. Go to AI Infrastructure > On-Prem > Monitoring > Job Monitoring.
2. Confirm the region and resource pool in the upper-right corner, and filter by job status, tenant/user, cluster, resource type, or time range.
3. View the job list and overall running status, and verify job ID, job name, job type, job status, tenant/user, cluster, and resource occupation.
4. Review queue duration, runtime duration, GPU/accelerator occupation, failure information, and event entrypoints to identify long queueing, startup failures, insufficient resources, or abnormal occupation.

Investigate Abnormal Job Metrics

1. When jobs show batch queueing, stalled running status, or sudden failure spikes, note the abnormal job IDs and cluster.
2. Keeping the same time range, check Cluster Statistics and Node Statistics to verify if cluster-wide compute resources are exhausted.
3. Access job details and instance logs to investigate image pull timeouts, startup command errors, storage mount failures, or OOM crashes.
4. If deadlock jobs must be canceled or rescheduled, follow standard platform operational procedures rather than force-killing workloads without authorization.

Key Focus

• Whether failed and queued jobs increase abnormally.
• Whether long-running jobs occupy critical resources.
• Whether job tenant, specification, image, and cluster match expectations.

Parameter Quick Reference

Field Name	Required	Field Type	Example	Description
Job ID	Yes	Text	job-20260706-001	Locates a single job or task instance.
Job Name	Conditionally required	Text	inference-job	Helps locate a job by business name.
Job Type	Conditionally required	Enum	Runtime Instance	Distinguishes model instances, online IDEs, runtime instances, training tasks, or historical jobs.
Job Status	System-generated	Status	Running	Shows whether the job is queued, running, succeeded, or failed.
Tenant / User	Conditionally required	Text	tenant-a	Used to locate job ownership by tenant or user.
Cluster	Conditionally required	Text	cluster-prod-a	Locates the cluster where the job is running or queued.
Node	System-generated	Text	node-gpu-01	Shows the node to which the job is scheduled.
Resource Specification	System-generated	Text	2 * A800	Shows the resource specification requested or occupied by the job.
GPU / Accelerator Occupation	System-generated	Number / Text	2 * A800	Shows accelerator specification and quantity occupied by the job.
Queue Duration	System-generated	Duration	18 minutes	Determines whether scheduling is waiting or resources are insufficient.
Runtime Duration	System-generated	Duration	2 hours 15 minutes	Determines whether the job runs longer than expected.
Failure Information	System-generated	Text	ImagePullBackOff	Helps locate job failure causes.
Time Range	Conditionally required	Date range	Last 1 hour	Controls the query window for statistic cards, trend charts, and list data.

Pitfalls

• Job queueing is not necessarily a failure. It may be caused by insufficient resources or quotas.
• Failure causes should be judged together with events, logs, and image pull status.
• Long-running jobs should be evaluated for resource occupation and cost.
• Job monitoring may have collection latency. Do not judge faults based only on a single instant status.
• Job exceptions should be investigated together with events, logs, image pull, startup command, storage mount, node status, and device status.
• Long-running or high-resource jobs are not necessarily abnormal. Judge together with business expectations, tenant quotas, and model specifications.
• Do not write real job IDs, instance names, image addresses, data paths, log contents, tenant information, node names, cluster IDs, resource pool IDs, internal metric keys, or test data in the document.
• Terminate, Restart, and Delete are high-risk actions. Confirm the scope and impact before executing the final action.

Configuration Rules and Impact

• For queueing, check resources and scheduling conditions first: Queueing is not necessarily a platform fault. It may be caused by specification, labels, quotas, or cluster capacity limits.
• Use events with failure information: Error codes and events can distinguish image, storage, startup command, permission, and insufficient resource issues.
• Runtime duration helps discover stuck tasks: Long-running tasks should be judged together with logs, resource utilization, and business expectations.
• Resource occupation affects other users: When large jobs are submitted intensively, monitor tenant quotas and cluster watermarks at the same time.

Result Validation

Check Item	Success Signal	If Abnormal
Page load	Jobs charts or lists are visible	Check monitoring permission and whether collection is available in the selected region
Scope	Time range, region, and object count match the investigation	Clear filters and restore them one at a time to avoid mixed scopes
Freshness	Update time is within the expected collection interval	Check collection interval, connection, and alerts in system or monitoring configuration
Correlation	An abnormal metric can be linked to a cluster, node, device, or job	Keep the same time range and cross-check adjacent monitoring pages and object details

FAQ

No Data on Jobs

Symptom:

The page opens, but charts or lists are empty.

Possible Causes:

• No job ran in the selected time.
• collection is unavailable in the region.
• the role lacks metric permission.

Solution:

1. Expand the time range and reset filters
2. verify regional monitoring capability
3. compare an adjacent monitoring page.

Jobs Is Not Updating

Symptom:

The data does not change for an extended period.

Possible Causes:

• The next collection cycle has not arrived.
• the collector is abnormal.
• the page is cached.

Solution:

1. Check update time
2. inspect collector status and alerts
3. refresh with the same time range.

Jobs Differs from Adjacent Pages

Symptom:

The same object has different values on two monitoring pages.

Possible Causes:

• Aggregation granularity differs.
• time range or time zone differs.
• filters target different objects.

Solution:

1. Align time range and time zone
2. verify aggregation scope
3. clear and restore filters one at a time.

Unable to Locate Target Object in Related Monitoring

Symptom:

The metric or details entry does not lead to the expected object.

Possible Causes:

• The object ended or was removed.
• the role cannot see it.
• relationship identifiers differ.

Solution:

1. Record object and time
2. check its list state
3. ask the Operator to verify visibility.

A Spike Cannot Be Reproduced

Symptom:

A spike was recorded, but current details are normal.

Possible Causes:

• The spike was brief.
• sampling is coarse.
• the job has ended.

Solution:

1. Lock the spike interval
2. compare job and node events
3. retain a sanitized screenshot and object identifier.

Notes

• Job names, image addresses, data paths, and log contents may contain sensitive information.
• Before terminating a job, confirm business impact and output file retention policy.
• High-frequency failed jobs should be reviewed through templates or images.
• Terminate, Restart, and Delete affect real jobs. Confirm the scope and impact before executing the final action.
• Documentation examples must not include real job IDs, instance names, image addresses, data paths, log contents, tenant information, node names, cluster IDs, resource pool IDs, internal metric keys, or test data.

Next Steps

1. For queueing issues, verify quotas, specifications, and cluster capacity.
2. For failure issues, verify images, startup commands, storage, and events.
3. For long-running tasks, enter usage and monitoring pages to evaluate consumption.
