Inference Templates

Feature Overview

Item	Content
Applicable Role	Operator
Navigation Path	AI Infra(On-Prem) > Templates > Inference Templates
Page Route	/powerone/fast-build-v2/inference-templates
Managed Object	Configuration, status, and relationships on Inference Templates

Beginner Explanation

An inference template is like an assembly list for a model service. It combines frameworks, specifications, default parameters, and visibility scope so users can quickly create services from the template during deployment.

Terms

Term	Description
Template	Deployment plan selected when users create model instances.
Factor Form	Parameter set filled in by users when creating instances.
Dynamic Expression	Dynamically calculates field values or display conditions based on user input, model, precision, or resource conditions.

Recommended Operation Order

Confirm prerequisites for Inference templates, model scope, framework scope, specification recommendations, form parameters, and publication status, follow Main Operations, run Result Validation, and continue to the next page.

First-Time User Notes

Confirm that the task involves Configuration, status, and relationships on Inference Templates, and then follow the recommended order. If fields or state differ from expectations, check prerequisites before continuing downstream.

Prerequisites

1. Model configuration, framework configuration, and VRAM estimation have been completed.
2. Available resource specifications have been created and associated with target clusters.
3. Image services and required storage capabilities have been connected.
4. The parameters that users need to fill in when creating instances have been clarified.

Page Description

Use this page to manage inference templates, model and framework scopes, recommended specifications, form parameters, and publishing state.

The page displays the inference template list, including template name, status, model scope, framework scope, update time, and operation entrypoints.

The following figure shows the inference templates page.

Main Operations

View Inference Templates

1. Open the corresponding template-configuration page and filter by name, version, status, or update time.
2. Open details and check associated models, frameworks, images, resource requirements, and current version.
3. If no record is returned, reset filters. For incompatibility, first check dependencies.
4. Redact internal images, storage locations, and startup configuration before sharing.

Create Inference Template

Pre-Operation Check

1. Available frameworks, runtime images, and model configurations have been prepared.
2. Resource specifications, deployment mode, and visibility scope adapted by the template have been confirmed.
3. Default parameters have been confirmed not to expose internal paths, credentials, or test endpoints.
4. Which user deployment entrypoints are affected by template changes has been clarified.

Procedure

1. Go to AI Infrastructure > On-Prem > Templates > Inference Templates.
2. In the top right, click "Create Inference Template".
3. In the Model dropdown, select the target model (e.g., DeepSeek-R1-Distill-Qwen-7B).
4. In the Model Version dropdown, select a version that does not have an inference template created yet.
5. In the Framework Version dropdown, select an adapted inference framework version (e.g., vLLM · v0.13.0).
6. In Template Name, verify or customize the template name (defaults to the model name).
7. Confirm the model and framework dependencies, then click "Save" to finish creation.

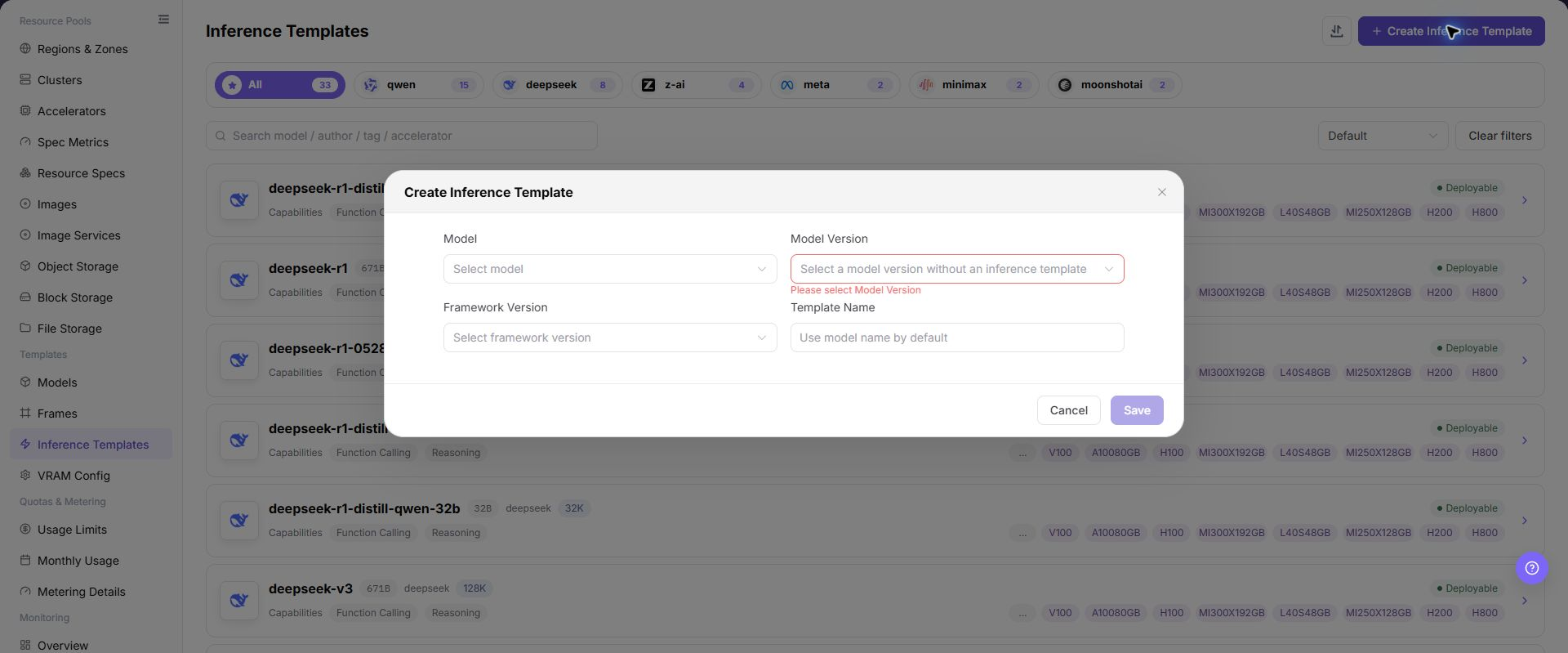

Operation Screenshot

The image shows the Create Inference Template dialog. Select model, model version, and framework version, then confirm the template name. After saving, it serves as the standard deployment template for that model version.

Import or Export Inference Templates

Applicable Scenarios

Use the "Import/Export" menu to batch-maintain inference templates, or to export template configurations for audit, reconciliation, and controlled migration.

Steps

1. Go to AI Infrastructure > On-Prem > Templates > Inference Templates.
2. Click "Import/Export" and choose "Import" or "Export" according to the business purpose.
3. For import, upload the file as required by the page and verify template, model, framework, resource specification, factor form, and visibility scope.
4. For export, confirm the template filter scope, then generate and download the template configuration as prompted by the page.
5. Before importing, verify that dependencies are available in the target environment. Save export files in a controlled directory.

Result Validation

• After import, the Inference Templates list shows the added or updated template and state.
• The template scope in the export file matches the current filter conditions.
• Model, framework, specification, and parameter references in template details can be resolved correctly.

Notes

• Template import depends on model, framework, image, and specification objects. Do not submit it when dependencies are missing in the target environment.
• Import may update a template with the same identifier. Verify release scope, default parameter values, and downstream deployment impact first.

Parameter Quick Reference

Field Name	Required	Field Type	Example	Description
Template Name	Yes	Text	llm-inference-template	Template name users see when creating inference services. Use a maintainable name instead of temporary test naming.
Description	No	Multi-line text	Example description	Template purpose, adapted model, and usage boundary. Write non-sensitive notes only. Do not include internal addresses or test parameters.
Applicable Scenario	Conditionally required	Dropdown / enum	Model inference	Business scenario or model service type for the template. Keep it consistent with model type, framework capability, and user entry.
Publication Scope	Conditionally required	Dropdown / enum	Example value	Scope where the template is published to the user side. Confirm affected tenants, regions, and entries before publishing.
Visibility Scope	Yes	Dropdown / enum	Tenant A	Controls which users or tenants can use the template. Incorrect scope may make the template invisible or visible to non-target tenants.
Model	Conditionally required	Dropdown / enum	A100-SXM4-80GB	Model or model set applicable to the template. Dependent objects must be available and match the framework.
Model Version	Conditionally required	Dropdown / enum	v0.8.0	Model version referenced by the template. Keep it consistent with model path, quantization method, and VRAM estimation rules.
Model Source	Conditionally required	Address / path	Object Storage	Model file source, repository source, or object storage source. Do not write real model repository addresses, endpoints, or internal paths.
Framework	Yes	Number / capacity	vLLM	Runtime framework configuration called by the template. The framework must support the selected model type and runtime mode.
Framework Version	Conditionally required	Text	v0.8.0	Framework version referenced by the template. Confirm impact on existing templates and instances before modification.
Runtime Image	Conditionally required	Text	<BASE_URL>/<PROJECT>/<IMAGE>:<TAG>	Container image used by the framework runtime. Confirm image region, registry permissions, and target cluster pull access.
Resource Specification	Yes	Number / capacity	gpu-a100-1card	Default recommended or selectable compute specification for the template. Match model VRAM, concurrency, context length, and deployment mode.
Deployment Mode	Yes	Dropdown / enum	Single instance	Determines service replicas, scaling, and scheduling mode. Keep it consistent with framework startup commands and resource specifications.
VRAM Estimation Rule	Conditionally required	Number / capacity	80	VRAM rule used to recommend or validate specifications. Keep it consistent with model parameter count, quantization method, and context length.
Service Port	Conditionally required	Port / number	8000	Actual listening or exposed port of the model service. Must match the actual framework listening port.
Port Exposure Policy	Conditionally required	Port / number	Example value	Port exposure method and authentication mechanism. Incorrect configuration may expand service exposure scope.
Port Tag	No	Port / number	OpenAI API Port	Identifies port protocol type or purpose. Keep it consistent with OpenAI API, Ollama API, or custom protocol.
Health Check	Conditionally required	Address / path	/health	Path or command used to determine whether the service starts successfully. Match the actual service path, port, and startup delay.
Factor Form	Conditionally required	Configuration text	Context length	Parameter form that users fill in when creating instances. Verify fields, default values, and validation rules one by one.
Default Parameters	No	Dropdown / enum	--max-model-len 8192	Model or runtime parameters prefilled when creating services. Do not write real tokens, AK/SK, private keys, endpoints, or test values.
Dynamic Expression	Conditionally required	Dropdown / enum	${gpuCount} >= 1	Dynamically calculates fields or visibility based on model, framework, specification, or user input. Expression errors can cause missing fields or abnormal startup commands.
Trigger Condition	Conditionally required	Dropdown / enum	Model type = LLM	Controls fields displayed under specific models, frameworks, or options. Validate with actual model, framework, and specification combinations.
Actions	System-generated	Action entry	Edit	Add, save, submit, publish, OK, and similar page operations. Save, Submit, Publish, and OK are high-risk final actions.

Pitfalls

• Publishing an inference template affects user-side selectable templates and the real service creation scope.
• Incorrect visibility scope may make the template invisible or visible to non-target tenants.
• Mismatched model, framework, image, specification, or VRAM rules can cause instance creation or startup failures.
• Incorrect default parameters, dynamic expressions, or trigger conditions can cause missing user form fields, wrong parameters, or abnormal startup commands.
• Incorrect port exposure policy may expand the service exposure scope.
• Do not write real tokens, AK/SK, private keys, endpoints, internal addresses, model repository addresses, tenant IDs, cluster IDs, or test parameters.
• Save, Submit, Publish, and OK are high-risk final actions. Confirm the scope and impact before executing the final action.

Result Validation

Check Item	Success Signal	If Abnormal
Page entry	Inference Templates opens with the target operation entry	Check Operator permission and whether the menu is available
Object record	Configuration, status, and relationships on Inference Templates is visible in the list or details	Reset filters and verify name, ownership, and creation result
State result	State after creation or change matches the page message	Check operation feedback, dependency state, and latest update time
Downstream use	A downstream page can select or associate the target	Return to prerequisites and check enabled state, ownership, and visibility

FAQ

An Imported Inference Template Cannot Be Published or Deployed

Symptom:

The template import completes, but its state is abnormal or the template cannot be used on later publish or deployment pages.

Possible Causes:

• The model, framework, image, or specification is missing or unavailable in the target environment.
• Factor fields, default values, or validation rules are incompatible.
• Template visibility or state does not allow downstream use.

Solution:

1. Open template details and verify the model, framework, image, and resource specification one by one.
2. Open the corresponding configuration pages to verify dependency state and version compatibility.
3. Check template visibility, release state, and factor-form validation rules.

Target Is Missing from Inference Templates

Symptom:

The page opens, but the expected Configuration, status, and relationships on Inference Templates is missing.

Possible Causes:

• Filters remain active.
• the object belongs to another scope.
• a prerequisite is incomplete.

Solution:

1. Reset filters
2. verify region or tenant ownership
3. confirm prerequisite state.

The Operation Entry on Inference Templates Is Unavailable

Symptom:

The create, register, or maintain entry is hidden or disabled.

Possible Causes:

• Role permission is insufficient.
• the page is read-only.
• dependencies are not ready.

Solution:

1. Check Operator permission
2. read the page message
3. complete dependency configuration first.

Inference Templates Has an Abnormal State After the Operation

Symptom:

A record exists after submission, but its state is unexpected.

Possible Causes:

• Connectivity or validation failed.
• a dependency is abnormal.
• processing is incomplete.

Solution:

1. Check feedback and update time
2. inspect related objects
3. troubleshoot the processing stage.

A Downstream Page Cannot Use Inference Templates

Symptom:

The current page is normal, but a downstream page cannot select or associate Configuration, status, and relationships on Inference Templates.

Possible Causes:

• Visibility differs.
• the object is disabled.
• downstream cache is stale.

Solution:

1. Check enabled state and ownership
2. verify role visibility
3. refresh and select again.

Notes

• Template parameters must not contain real tokens, keys, or internal addresses.
• Before publishing a template, confirm that dependent models, frameworks, images, specifications, and storage are all available.
• Before modifying a published template, confirm the impact on user-side instance creation, template visibility scope, and active deployment entries.
• Before save, submit, publish, or confirm actions, verify the scope and impact and execute them only after approval.

Next Steps

1. Use a test tenant to create a model instance and verify the template.
2. Adjust image, startup command, ports, and parameters based on failure logs.
3. After template publication, periodically review model versions, framework versions, and specification scope.
4. Review failure logs by model, framework, specification, and factor form combination to continuously calibrate the template.
