Cloud Platforms

Feature Overview

Item	Content
Applicable Roles	Operators
Navigation Path	AI Infra(On-Cloud) > Access Management > Cloud Platforms
Page Route	/infrahub/op/access/platform
Managed Objects	Public and private cloud platform records and display settings

Beginner Explanation

Cloud Platforms registers the cloud providers that can be used. Add the platform type and record before accounts, pools, and authorization can reference it.

Terminology

Term	Description
Public Cloud	A cloud platform provided by an external cloud provider.
Private Cloud	A cloud platform maintained by an organization.
Provider Identifier	The unique identifier of a private-cloud record.

Recommended Operation Order

Review the list to avoid duplicates, add the platform, edit private-cloud display settings when needed, and check all account, pool, and authorization references before deletion.

Beginner Checklist

Scenario	Do First	Do Not Do Directly
First visit	Review existing objects, states, and available actions	Change an unknown object
Before a change	Verify upstream dependencies, impact scope, and target object	Skip dependency and impact checks
After completion	Validate the current and downstream pages with Result Validation	Rely only on a success message
Page error	Record the redacted object, time, and page message	Submit repeatedly or record real credentials

Prerequisites

1. The current account has the permission required for Cloud Platforms.
2. Confirm the platform type and ownership, and verify that no duplicate record exists.
3. Before editing or deleting, check account, pool, authorization, and deployment dependencies.

Page Description

The page provides All, Public Cloud, and Private Cloud views, with add, import, export, edit, and delete actions.

Page screenshots:

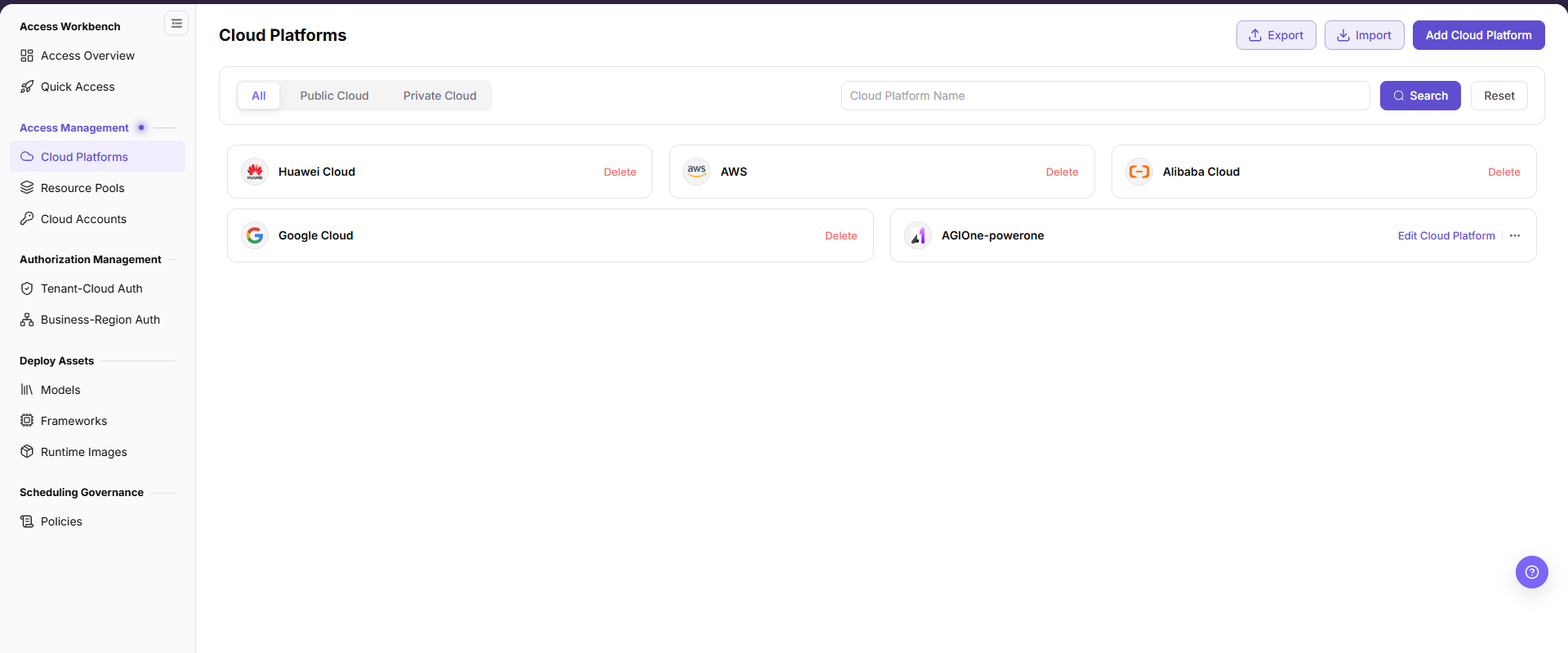

The image shows the main Cloud Platforms page, allowing users to view connected provider cards by public or private cloud, search platforms, and access Add, Import, and Export actions.

Main Operations

Add Cloud Platform

1. Click "Add Cloud Platform".
2. Select Public Cloud or Private Cloud.
3. Select an existing platform in Select Platform and check for duplicates.
4. Click "Confirm" and verify the new record in the list.

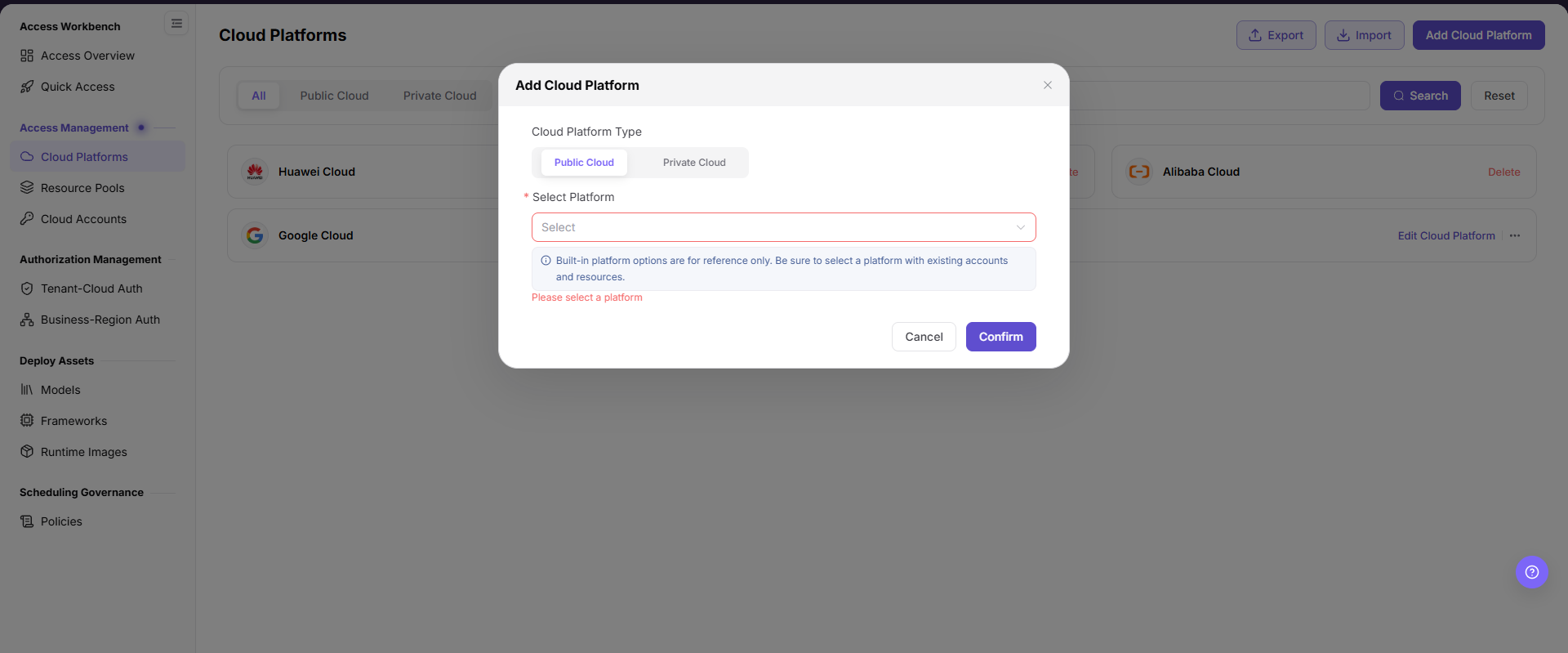

The image shows the Add Cloud Platform dialog, where you choose the platform type (Public Cloud/Private Cloud) and select the specific provider from the platform dropdown before confirming.

Edit Cloud Platform

1. Click "Edit Cloud Platform" on the target private-cloud card.
2. Verify the platform type and identifier, and update multilingual display names, link address, or logo as needed.
3. Click "Confirm", refresh the list, and verify the result.

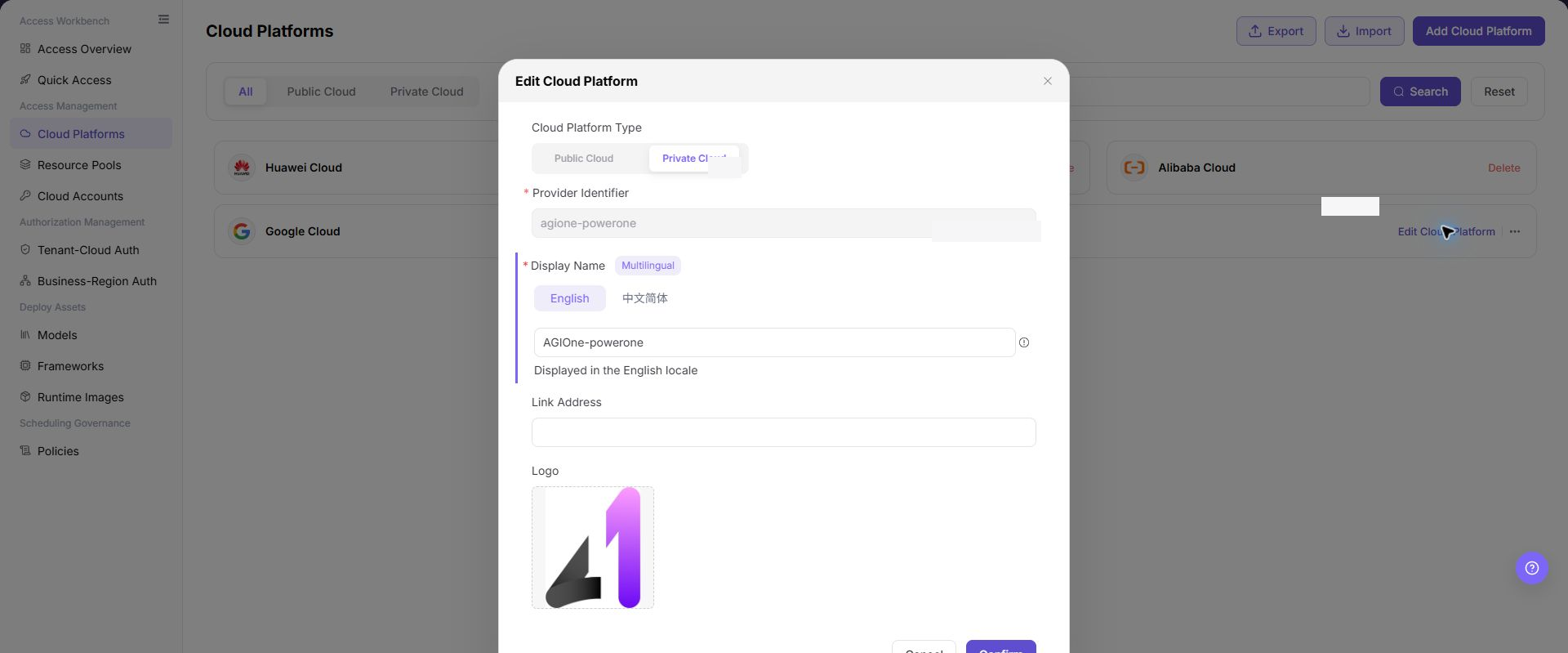

The image shows the Edit Cloud Platform dialog for private cloud platforms, where you can maintain the platform identifier, multilingual display names, platform URL, and logo.

Delete Cloud Platform

1. Locate the target card and confirm that accounts, pools, or authorization do not reference it.
2. Click "Delete" and verify the target in the confirmation message.
3. Confirm deletion and refresh the list. If deletion fails, remove the dependencies identified by the page.

Parameter Reference

Field Name	Required	Field Type	Example	Description
Cloud Platform Name	No	Text / search condition	Huawei Cloud	Cloud platform name used for list display and search.
Cloud Platform Type	Yes	Segmented control	Public Cloud	Platform category selected when adding a cloud platform. The current screenshot shows Public Cloud and Private Cloud.
Select Platform	Yes	Dropdown	Alibaba Cloud	Specific cloud provider or cloud platform selected when adding a cloud platform.
Add Cloud Platform	No	Action button	Add Cloud Platform	Opens the add cloud platform dialog.
Search	No	Action button	Search	Filters the list by cloud platform name or other conditions.
Reset	No	Action button	Reset	Clears filters and restores the default list.
Import	No	Action button	Import	Imports cloud platform configuration and may affect real configuration. Use with caution.
Export	No	Action button	Export	Exports cloud platform configuration or list data. Pay attention to sensitive information.
Edit Cloud Platform	No	Action entry	Edit Cloud Platform	Opens the configuration page or dialog for an existing cloud platform.
Delete	No	High-risk action	Delete	Before deleting a cloud platform record, confirm dependent accounts, resource pools, and authorization relationships.

Pitfalls

• Do not skip the upstream dependency check: Confirm the platform type and ownership, and verify that no duplicate record exists.
• Confirm impact before a configuration change: Before editing or deleting, check account, pool, authorization, and deployment dependencies.
• A success message does not prove downstream synchronization. Use Result Validation afterward.
• Use only <API_KEY>, <PERSONAL_KEY>, <ACCESS_KEY_ID>, <ACCESS_KEY_SECRET>, <BASE_URL>, and <ENDPOINT_PATH> for credential and endpoint examples.

Result Validation

Check Item	Success Signal	If Abnormal
Page is accessible	Title, navigation, and main content display correctly	Check role permission and navigation path
Managed objects are visible	Public and private cloud platform records and display settings display as expected	Clear filters and verify upstream dependencies
Operation result is saved	The expected state or new record appears	Review page messages, required fields, and dependencies
Downstream result is consistent	Associated pages show the change	Wait for synchronization, refresh, and return to the responsible object

FAQ

Target Object Is Missing in Cloud Platforms

Symptom:

The expected object is missing from the list or selector.

Possible Causes:

• Active query criteria filter out the target object.
• An upstream object is disabled, or the current role lacks visibility.

Resolution:

1. Clear filters and refresh the page.
2. Verify the prerequisite object: Confirm the platform type and ownership, and verify that no duplicate record exists.
3. Confirm the current role and data scope, then locate the object again.

Cloud Platforms Action Is Unavailable

Symptom:

An expected button, menu, or state switch is unavailable.

Possible Causes:

• The current account lacks the required action permission.
• Object state, references, or prerequisites block the action.

Resolution:

1. Verify the permission for the action and the current object state.
2. Check references and prerequisites identified by the page message.
3. Remove the blocker, refresh the page, and perform the action once.

Cloud Platforms Change Does Not Reach Downstream

Symptom:

The page reports success, but a downstream page still shows the old state.

Possible Causes:

• An associated page has stale cache or synchronization delay.
• The current and downstream pages use different roles, tenants, or data scopes.

Resolution:

1. Wait for synchronization and refresh both pages.
2. Confirm that both pages use the same role, tenant, and object scope.
3. If they still differ, return to the responsible object and verify the saved result.

Cloud Platforms Data Differs from Another Page

Symptom:

Counts or states differ from an associated page.

Possible Causes:

• The pages use different filters, aggregation rules, or update times.
• The change is still synchronizing, or role-based data scopes differ.

Resolution:

1. Align filters and aggregation rules on both pages.
2. Check update times and wait for synchronization.
3. Compare object details instead of summary counts only.

How to Troubleshoot a Cloud Platforms Failure

Symptom:

Submission fails or the state does not change for an extended period.

Possible Causes:

• Required fields, field combinations, or object state do not meet submission rules.
• An upstream dependency is invalid, the request failed, or the same action is already processing.

Resolution:

1. Record the redacted object, time, and complete page message.
2. Verify required fields, object state, and upstream dependencies.
3. Confirm that no identical job is processing before one retry.

Notes

• Before editing or deleting, check account, pool, authorization, and deployment dependencies.
• Do not put real accounts, credentials, internal locations, or customer data in documentation, screenshots, tickets, or chat records.
• Authorization, deployment, deletion, publication, state, or billing changes require an auditable record and recovery plan.

Next Steps

1. Go to Cloud Accounts to configure account access for the added cloud platform.
2. Go to Resource Pools to create or synchronize the corresponding resource pool.
3. Go to Tenant-Cloud Auth or Business-Region Auth to configure the available scope.
