Runtime Images

Feature Overview

Item	Content
Applicable Roles	Operators
Navigation Path	AI Infra(On-Cloud) > Deploy Assets > Runtime Images
Page Route	/infrahub/op/model/image
Managed Objects	Runtime images, image locations, platform architecture, and pool scope

Beginner Explanation

Runtime Images defines the runtime package for model services. It tells frameworks where an image is located and which platforms and pools can use it; incorrect configuration causes pull or startup failures.

Terminology

Term	Description
Image Location	A reference in an image registry. Documentation uses placeholders only.
Platform Architecture	The processor or runtime architecture supported by the image.
Resource Pool Scope	The platforms and pools allowed to use the image.

Recommended Operation Order

Check for an existing image, add it and confirm platform, architecture, and pool scope, edit when location or scope changes, and validate it in a framework version.

Beginner Checklist

Scenario	Do First	Do Not Do Directly
First visit	Review existing objects, states, and available actions	Change an unknown object
Before a change	Verify upstream dependencies, impact scope, and target object	Skip dependency and impact checks
After completion	Validate the current and downstream pages with Result Validation	Rely only on a success message
Page error	Record the redacted object, time, and page message	Submit repeatedly or record real credentials

Prerequisites

1. The current account has the permission required for Runtime Images.
2. The image owner has confirmed accessibility, and platform and architecture are known.
3. Before adding or editing, check framework versions, pool permissions, and image-pull requirements.

Page Description

The page lists runtime images and provides an add entry, including ownership, state, and actions.

Page screenshots:

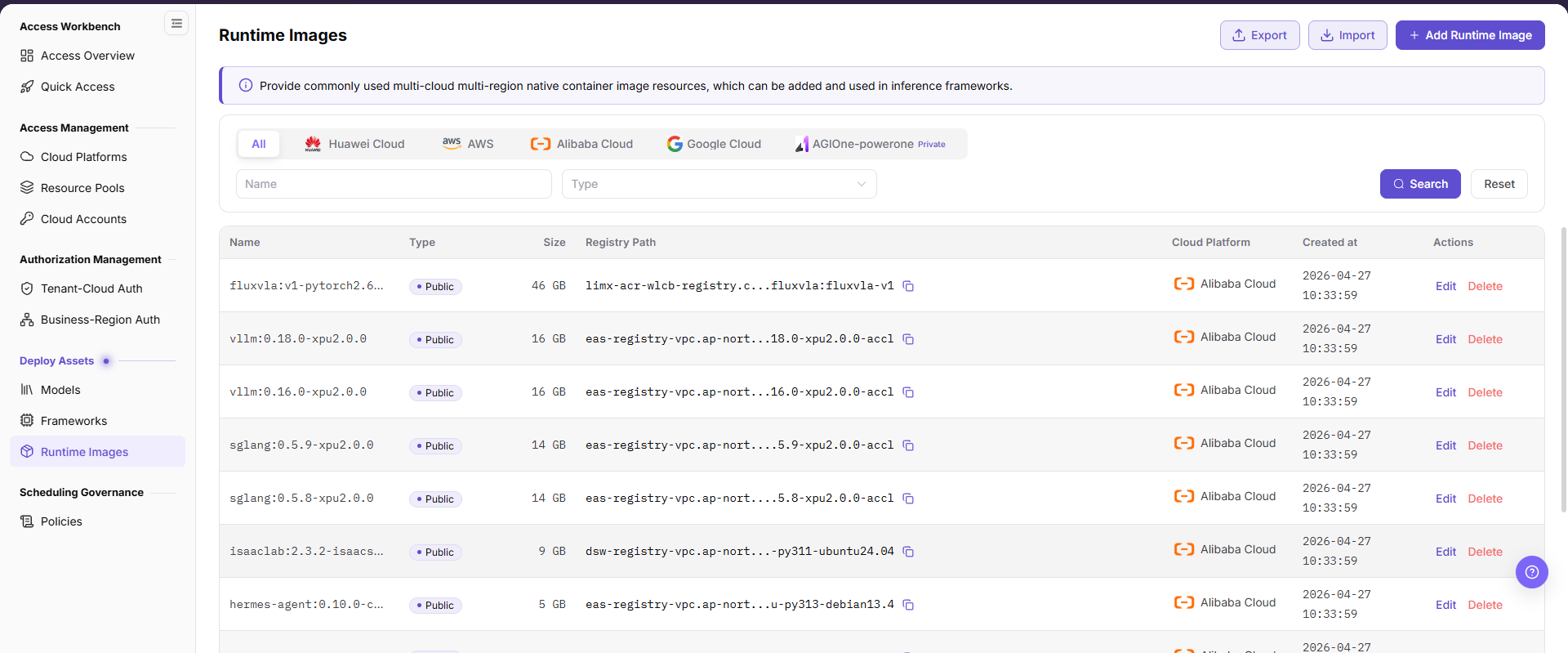

The image shows the Runtime Images list page, displaying image names, repository paths, image types, and sizes across cloud platforms and regions, with an Add Runtime Image button.

Main Operations

Add Runtime Image

1. Click "Add Runtime Image".
2. Enter the name, image location, and platform architecture.
3. Select the applicable platform and pool scope.
4. Click "Confirm" and verify the new record.

The image shows the Add Runtime Image dialog, configuring the cloud platform, region, image type (public/private), image name, repository path, and description.

Edit Runtime Image

1. Click "Edit" on the target image row.
2. Verify the image location, architecture, and pool scope.
3. Save and verify that framework versions can still select and pull the image.

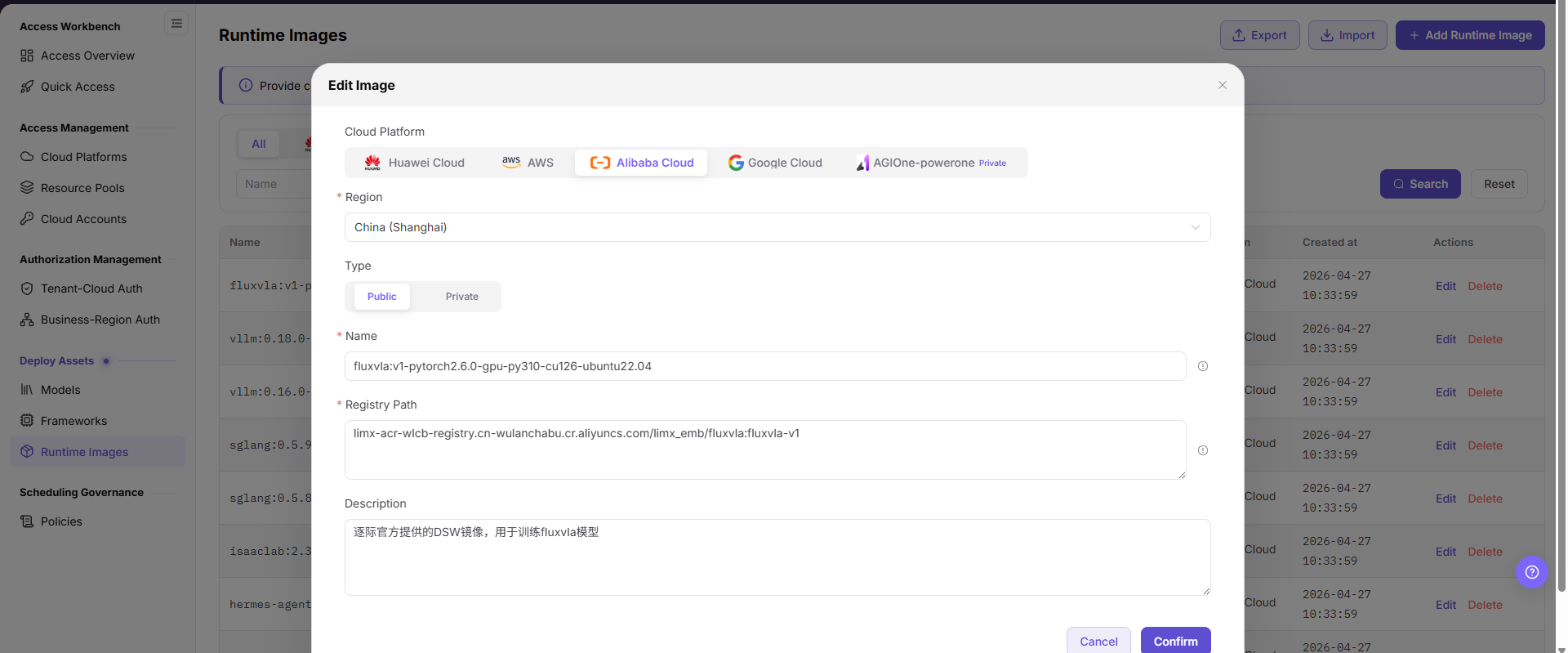

The image shows the Edit Runtime Image dialog, where you can update the repository path and description.

View Runtime Images

1. Locate the target image by name or state.
2. Verify platform, architecture, pool scope, and update time.
3. If information differs, verify it in Edit instead of adding a duplicate.

Parameter Reference

Field Name	Required	Field Type	Example	Description
Cloud Platform	Yes	Tab/Single select	Alibaba Cloud	Selects the cloud platform to which the image belongs or on which it can be used.
Region	Yes	Dropdown	East China-Shanghai 1	Selects the region where the image is located or available.
Type	Yes	Segmented control	Public	Selects public or private image.
Name	Yes	Text	framework:v1.0-runtime	Image identifier. It is recommended to include framework, version, and environment.
Registry Path	Yes	Multiline text	<BASE_URL>/namespace/image:tag	Complete image repository path. Use placeholders only in documentation.
Description	No	Multiline text	Sample runtime image description	Briefly describes the core library and applicable model types. Do not write internal sensitive information.
Size	No	Text	16 GB	Image size displayed in the list.
Created at	No	Date time	2026-07-20 10:00:00	Image creation time displayed in the list.
Search	No	Button	Search	Queries image records with the current filters.
Reset	No	Button	Reset	Clears filters and restores the list display.
Export	No	Button	Export	Exports image records and may contain sensitive operational configuration.
Import	No	Button	Import	Imports image records in bulk and may change multiple configurations.
Edit	No	Action entry	Edit	Modifies an existing image configuration. Confirm the impact scope before editing.
Delete	No	Action entry	Delete	Deletes an image record and may affect later deployment selection.
Cancel	No	Button	Cancel	Closes the dialog without saving the current configuration.
Confirm	Yes	Button	Confirm	Submits the runtime image configuration. Review carefully before clicking.

Pitfalls

• Do not skip the upstream dependency check: The image owner has confirmed accessibility, and platform and architecture are known.
• Confirm impact before a configuration change: Before adding or editing, check framework versions, pool permissions, and image-pull requirements.
• A success message does not prove downstream synchronization. Use Result Validation afterward.
• Use only <API_KEY>, <PERSONAL_KEY>, <ACCESS_KEY_ID>, <ACCESS_KEY_SECRET>, <BASE_URL>, and <ENDPOINT_PATH> for credential and endpoint examples.

Result Validation

Check Item	Success Signal	If Abnormal
Page is accessible	Title, navigation, and main content display correctly	Check role permission and navigation path
Managed objects are visible	Runtime images, image locations, platform architecture, and pool scope display as expected	Clear filters and verify upstream dependencies
Operation result is saved	The expected state or new record appears	Review page messages, required fields, and dependencies
Downstream result is consistent	Associated pages show the change	Wait for synchronization, refresh, and return to the responsible object

FAQ

Target Object Is Missing in Runtime Images

Symptom:

The expected object is missing from the list or selector.

Possible Causes:

• Active query criteria filter out the target object.
• An upstream object is disabled, or the current role lacks visibility.

Resolution:

1. Clear filters and refresh the page.
2. Verify the prerequisite object: The image owner has confirmed accessibility, and platform and architecture are known.
3. Confirm the current role and data scope, then locate the object again.

Runtime Images Action Is Unavailable

Symptom:

An expected button, menu, or state switch is unavailable.

Possible Causes:

• The current account lacks the required action permission.
• Object state, references, or prerequisites block the action.

Resolution:

1. Verify the permission for the action and the current object state.
2. Check references and prerequisites identified by the page message.
3. Remove the blocker, refresh the page, and perform the action once.

Runtime Images Change Does Not Reach Downstream

Symptom:

The page reports success, but a downstream page still shows the old state.

Possible Causes:

• An associated page has stale cache or synchronization delay.
• The current and downstream pages use different roles, tenants, or data scopes.

Resolution:

1. Wait for synchronization and refresh both pages.
2. Confirm that both pages use the same role, tenant, and object scope.
3. If they still differ, return to the responsible object and verify the saved result.

Runtime Images Data Differs from Another Page

Symptom:

Counts or states differ from an associated page.

Possible Causes:

• The pages use different filters, aggregation rules, or update times.
• The change is still synchronizing, or role-based data scopes differ.

Resolution:

1. Align filters and aggregation rules on both pages.
2. Check update times and wait for synchronization.
3. Compare object details instead of summary counts only.

How to Troubleshoot a Runtime Images Failure

Symptom:

Submission fails or the state does not change for an extended period.

Possible Causes:

• Required fields, field combinations, or object state do not meet submission rules.
• An upstream dependency is invalid, the request failed, or the same action is already processing.

Resolution:

1. Record the redacted object, time, and complete page message.
2. Verify required fields, object state, and upstream dependencies.
3. Confirm that no identical job is processing before one retry.

Notes

• Before adding or editing, check framework versions, pool permissions, and image-pull requirements.
• Do not put real accounts, credentials, internal locations, or customer data in documentation, screenshots, tickets, or chat records.
• Authorization, deployment, deletion, publication, state, or billing changes require an auditable record and recovery plan.

Next Steps

1. Select or reference the runtime image in Frameworks.
2. Verify whether the image can be used in compute plans when adding a model in Models.
3. Use a test deployment to validate image pull, service startup, and health check results.
