Templates

Feature Overview

Item	Content
Applicable Role	Model Provider
Navigation Path	AI Infra(On-Prem) > Model Deployment > Templates
Page Route	/powerone/quickstart/inference-template
Managed Object	Configuration, status, and relationships on Templates

Beginner Explanation

Templates can be understood as an ordering page for model services. The user first selects a model, then checks the available accelerator and recommended specification, fills in deployment settings when needed, and finally reviews the preview before creating a model instance.

Terms

Term	Description
Template	A deployable solution maintained by operators that combines model, framework, image, specification, startup parameters, and visibility rules.
Model Library	Area that displays models available to the current user or tenant.
Accelerator	Hardware option, such as GPU or NPU, that can run the selected model.

Recommended Operation Order

Confirm prerequisites for Model library, accelerators, business parameters, recommended specifications, deployment settings, and preview information, follow Main Operations, run Result Validation, and continue to the next page.

First-Time User Notes

Confirm that the task involves Configuration, status, and relationships on Templates, and then follow the recommended order. If fields or state differ from expectations, check prerequisites before continuing downstream.

Prerequisites

1. The operator has published at least one template visible to the current tenant.
2. The current tenant has available quota in the target region.
3. Images, accelerators, specifications, and framework parameters required by the template have been configured by the operator.
4. If the deployment will expose a service, confirm the access scope and security policy before creating an instance.

Page Description

Use this page to select a model, accelerator, business parameters, recommended specification, deployment settings, and preview information.

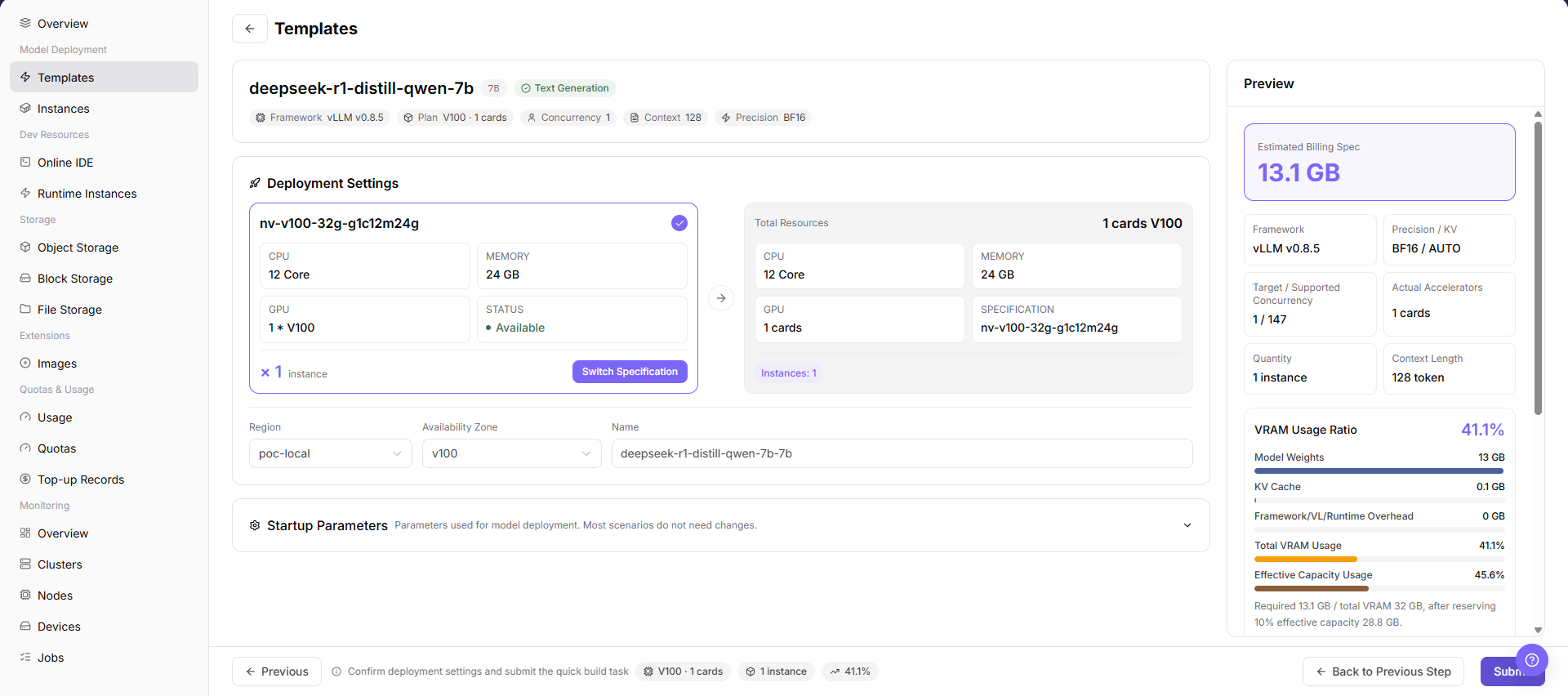

The page displays model library, accelerators, business parameters, recommended specifications, deployment settings, and preview information in a wizard. The screenshot shows the templates list area.

Page Areas

Field/Area	Description
Model Library	Displays deployable models by vendor and model name.
Accelerators	Displays accelerator vendor, model, VRAM, adaptation status, and peak capability.
Business Parameters	Displays model capability, context, startup, or runtime parameters that need confirmation.
Recommended Specifications	Displays selectable instance forms and recommended resource specifications.
Deployment Settings	Used to enter instance name, region, specification, startup parameters, and other deployment information.
Preview	Summarizes the selected configuration before submission.

Main Operations

View Deployment Templates

1. Go to Model Deployment > Deployment Templates.
2. Filter by template name, model, framework, status, or update time.
3. Open details and check model version, image, resource flavor, ports, storage, and replica configuration.
4. If no record is returned, reset filters. For an unavailable template, check dependent assets and quota.

Review Deployment Parameters and Cost

1. After selecting a template, review region, cluster, flavor, replicas, and estimated resource usage.
2. Compare capacity, availability, and quota with business requirements.
3. If parameters are incompatible, correct them according to the page message without bypassing limits.
4. Before the final deployment action, confirm resource and cost impact and execute the deployment only after approval.

Deploy Template

Pre-Operation Check

1. Confirm that the current account has access to AI Infra > On-Prem > Model Deployment > Templates.
2. Confirm that the target tenant and region have been selected correctly if the page provides global selectors.

Procedure

1. Go to AI Infrastructure > On-Prem > Model Deployment > Templates.
2. View deployable models in Model Library.
3. Select the target model and review Accelerators, Business Parameters, and Recommended Specifications.
4. Review model capability, context, startup, or runtime parameters in Business Parameters.

5. Enter Deployment Settings and review instance name, region, specification, and startup parameters.

6. Review final configuration in Preview.

Parameter Quick Reference

Field Name	Required	Field Type	Description
Template Name	System-generated	Text	Name of the deployable template shown by the platform.
Model	Required	Selection	Model selected from the model library.
Accelerator	Required	Selection	Accelerator vendor and model used for this deployment.
Business Parameters	Depends on template	Form fields	Model capability, context, startup, or runtime parameters maintained by the template.
Recommended Specification	Required	Selection	Resource specification recommended or allowed by the template.
Region	Required when deploying	Selection	Region or resource pool where the model instance will be created.
Instance Name	Required when deploying	Text	Name of the model instance to be created. Do not use real customer or sensitive names in documentation.
Startup Parameters	Depends on template	Text or form fields	Startup parameters inherited from the template or adjusted for a clear business need.
Status	System-generated	Enum	Whether the template or selected option can be used to create an instance.

Pitfalls

• If an accelerator shows Unadapted or Unmanaged, it may not be directly deployable.
• When recommended specifications are empty, first check accelerator adaptation, resource specifications, quota, and region.
• Template parameters are maintained by operators. Do not modify startup parameters casually, because incorrect parameters may cause model service startup failure.
• Submit, OK, and Confirm are high-risk final actions.
• Deploying through a template may create real model instances, occupy resources, and generate usage.
• Do not write real tenant names, region names, model IDs, resource IDs, internal image addresses, endpoints, startup parameters, logs, or test data in the document.

Result Validation

Check Item	Success Signal	If Abnormal
Page entry	Templates opens with the target operation entry	Check Operator permission and whether the menu is available
Object record	Configuration, status, and relationships on Templates is visible in the list or details	Reset filters and verify name, ownership, and creation result
State result	State after creation or change matches the page message	Check operation feedback, dependency state, and latest update time
Downstream use	A downstream page can select or associate the target	Return to prerequisites and check enabled state, ownership, and visibility

FAQ

Target Is Missing from Templates

Symptom:

The page opens, but the expected Configuration, status, and relationships on Templates is missing.

Possible Causes:

• Filters remain active.
• the object belongs to another scope.
• a prerequisite is incomplete.

Solution:

1. Reset filters
2. verify region or tenant ownership
3. confirm prerequisite state.

The Operation Entry on Templates Is Unavailable

Symptom:

The create, register, or maintain entry is hidden or disabled.

Possible Causes:

• Role permission is insufficient.
• the page is read-only.
• dependencies are not ready.

Solution:

1. Check Operator permission
2. read the page message
3. complete dependency configuration first.

A Required Field on Templates Has No Options

Symptom:

The form opens, but a selection list is empty.

Possible Causes:

• Candidates are disabled.
• ownership differs.
• the current account cannot see them.

Solution:

1. Check candidate state
2. verify ownership
3. confirm visibility and refresh the form.

Templates Has an Abnormal State After the Operation

Symptom:

A record exists after submission, but its state is unexpected.

Possible Causes:

• Connectivity or validation failed.
• a dependency is abnormal.
• processing is incomplete.

Solution:

1. Check feedback and update time
2. inspect related objects
3. troubleshoot the processing stage.

A Downstream Page Cannot Use Templates

Symptom:

The current page is normal, but a downstream page cannot select or associate Configuration, status, and relationships on Templates.

Possible Causes:

• Visibility differs.
• the object is disabled.
• downstream cache is stale.

Solution:

1. Check enabled state and ownership
2. verify role visibility
3. refresh and select again.

Notes

• Deploying through a template may create real model instances, occupy resources, and generate usage. Confirm instance name, region, specification, and runtime cycle before submission.
• Screenshots or tickets must not contain internal service addresses, access keys, endpoints, sensitive startup parameters, logs, or customer information.
• Templates, specifications, and accelerators are maintained by operators. If the user side cannot select a target option, check publishing scope, tenant visibility, quota, and resource pool status with the operator.

Next Steps

1. Go to Instances to view model instance status.
2. Go to Usage or Quotas to review quota and usage changes.
3. Go to Monitoring Overview to monitor runtime status after deployment.
