Frameworks

Feature Overview

Item	Content
Applicable Roles	Operators
Navigation Path	AI Infra(On-Cloud) > Deploy Assets > Frameworks
Page Route	/infrahub/op/model/framework
Managed Objects	Inference frameworks, framework versions, runtime images, and startup configuration

Beginner Explanation

Frameworks defines how a model service runs. A framework version combines the runtime image, startup method, and support scope for use by model-library records.

Terminology

Term	Description
Inference Framework	The runtime framework that hosts model inference.
Framework Version	A framework record bound to an image and startup configuration.
Publish Version	Makes a maintained version available to model configuration.

Recommended Operation Order

Review framework details and existing versions, add the framework, publish a configured version, and validate its availability in Models.

Beginner Checklist

Scenario	Do First	Do Not Do Directly
First visit	Review existing objects, states, and available actions	Change an unknown object
Before a change	Verify upstream dependencies, impact scope, and target object	Skip dependency and impact checks
After completion	Validate the current and downstream pages with Result Validation	Rely only on a success message
Page error	Record the redacted object, time, and page message	Submit repeatedly or record real credentials

Prerequisites

1. The current account has the permission required for Frameworks.
2. The target runtime image is registered and framework-version startup requirements are confirmed.
3. Before publishing a version, check model references, image accessibility, and startup parameters.

Page Description

The page provides framework lists, details, versions, and the add entry.

Page screenshots:

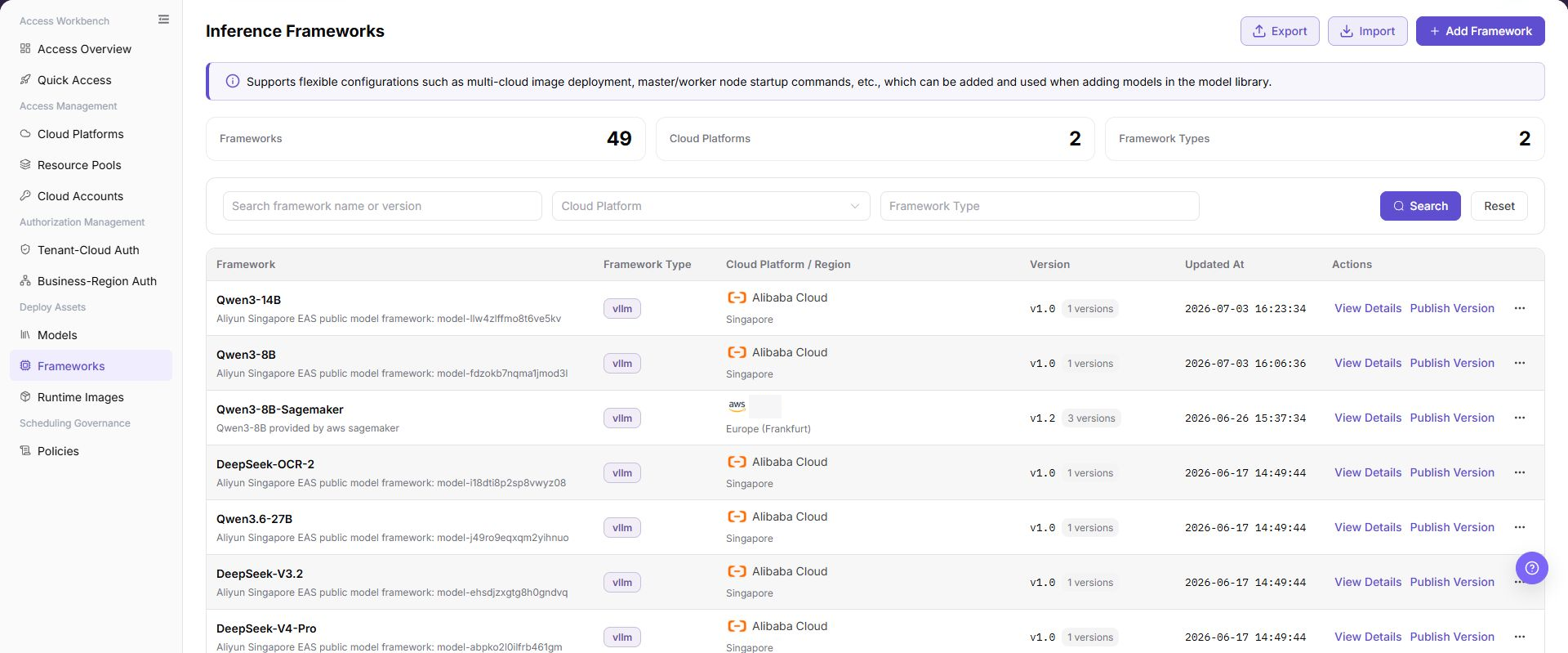

The image shows the Frameworks list page, displaying framework cards, framework types, and publish status by cloud platform, along with the Add Framework button.

Main Operations

View Framework Details

1. Locate the target framework and open its details.
2. Verify the framework identifier, state, and version list.
3. Open the target version and verify the runtime image and startup configuration.

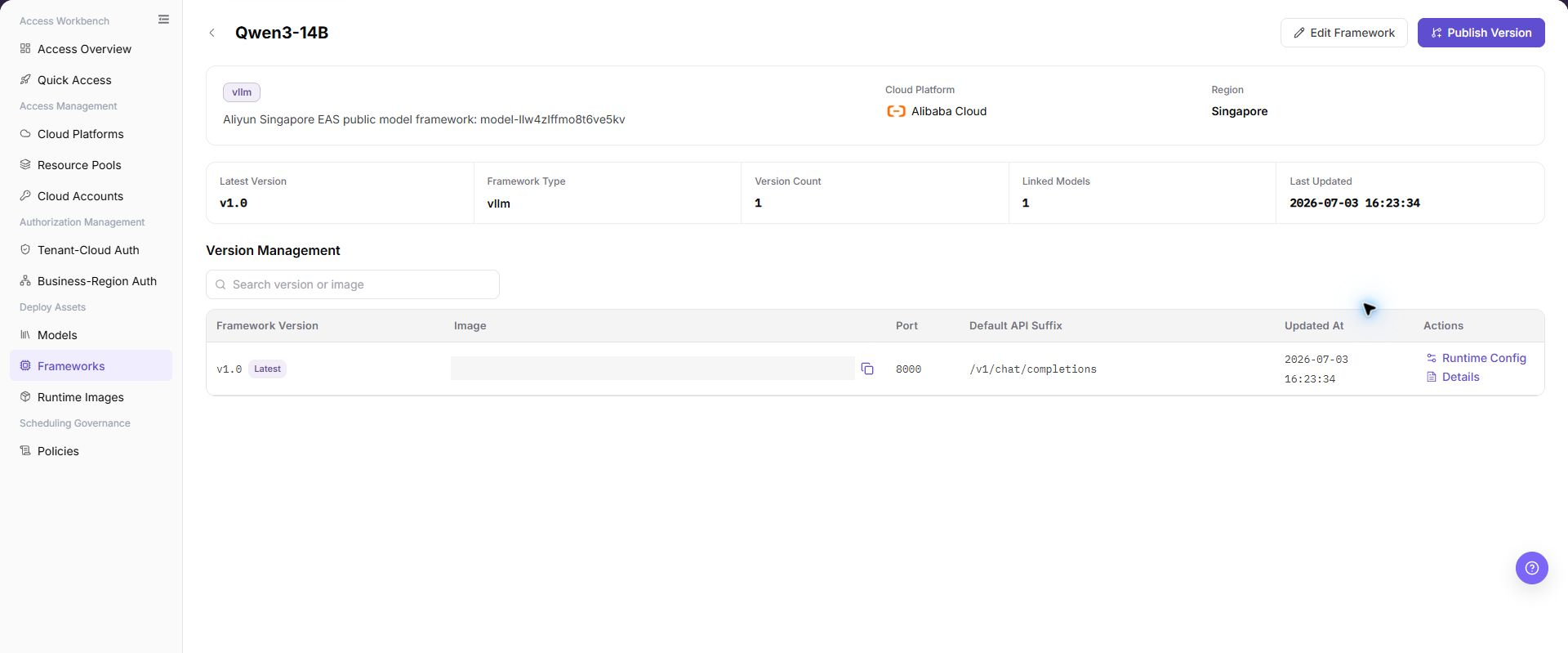

The image shows the Framework Details drawer, displaying framework metadata, version list, associated runtime images, and master/worker startup command settings.

Add Framework

1. Click "Add Framework".
2. Enter basic information and add a version.
3. Select the runtime image and maintain startup and support scope.
4. Click "Confirm" and open the details for validation.

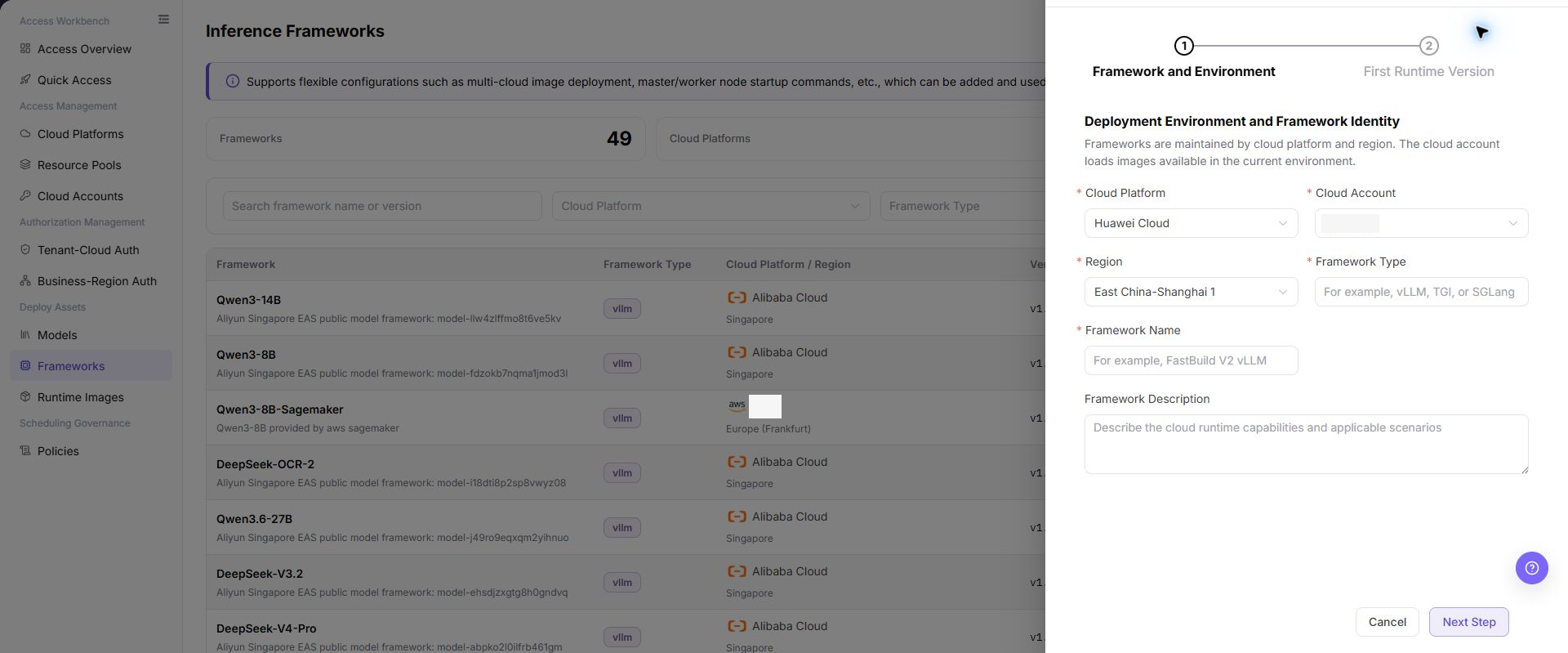

The image shows the Add Framework form, containing configurations for cloud account, region, framework type, framework name, initial version number, and container startup commands.

Publish Framework Version

1. Locate the configured version in framework details.
2. Click "Publish" and verify the version, image, and scope.
3. After publication, confirm that the version is selectable in Models.

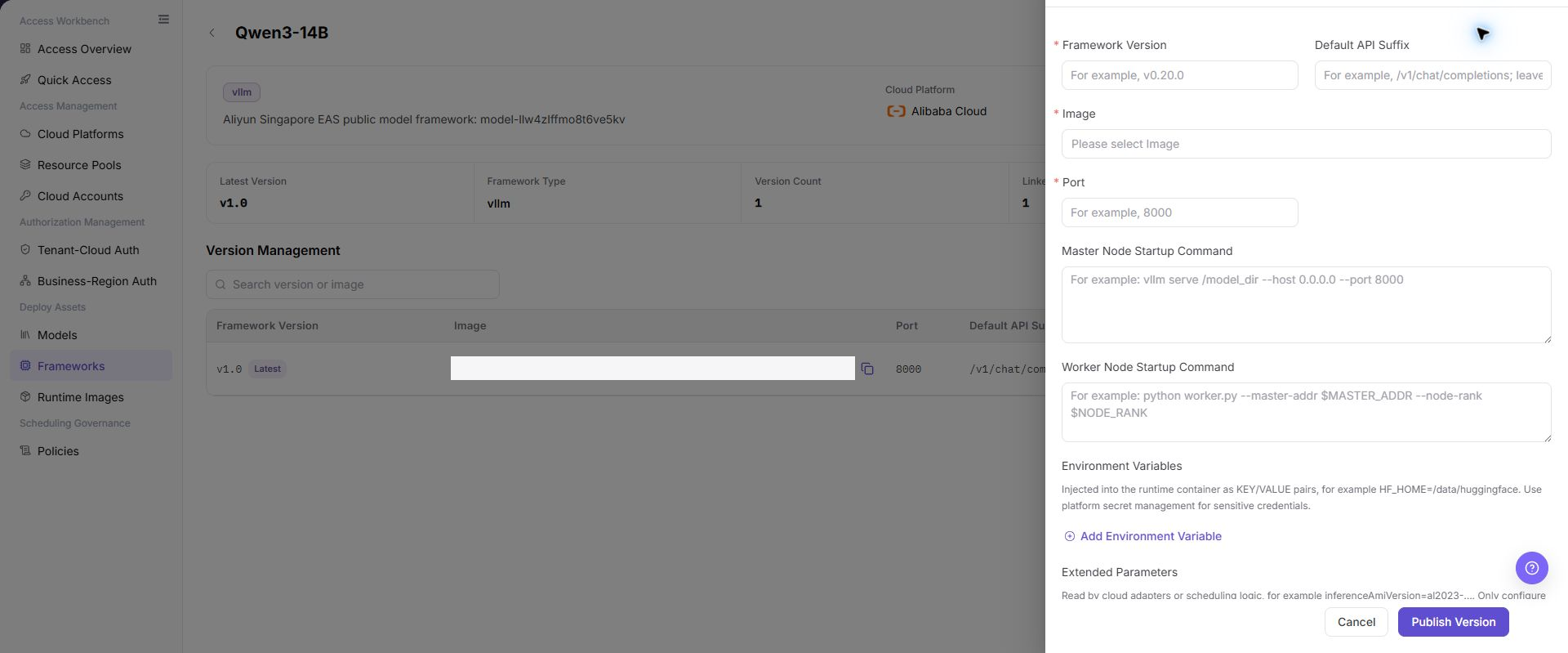

The image shows the confirmation dialog for publishing a framework version, making it available for reference in model configurations.

Parameter Reference

Field Name	Required	Field Type	Example	Description
Cloud Platform	Yes	Tab/Single select	Alibaba Cloud	Selects the cloud platform to which the framework belongs.
Cloud Account	Yes	Dropdown	Sample Cloud Account	Selects the cloud account under the current cloud platform.
Region	Yes	Dropdown	East China-Shanghai 1	Selects the region where the framework is available.
Framework Type	Yes	Text	LLM	Framework type. The page example includes LLM.
Framework Name	Yes	Text	Sample Framework	Framework display name in the list and model configuration.
Framework Description	No	Multiline text	Sample description	Describes the framework purpose or compatible scenario. Do not write internal sensitive information.
Framework Version	Yes	Text	v1.0	Framework version.
Default API Suffix	No	Text	/v1/chat/completions	Default API path suffix for the model service.
Image	Yes	Dropdown	Sample Image	Runtime image used by the framework.
Port	Yes	Number/Text	8000	Port listened on by the framework service.
Master Node Startup Command	Yes	Multiline text	python3 /opt/start.py	Startup command for the master node. Examples must be sanitized.
Worker Node Startup Command	No	Multiline text	python3 /opt/worker.py	Startup command for worker nodes, filled in when required by the framework.
Environment Variables	No	Key-value configuration	ENV_NAME=value	Added through Add Environment Variable. Do not write real secrets.
Extended Parameters	No	Key-value configuration	PARAM=value	Added through Add Extended Parameter. Do not write internal sensitive parameters.
Export	No	Button	Export	Exports framework configuration and may contain sensitive operational information.
Import	No	Button	Import	Imports framework configuration in bulk and may change multiple records.
Cancel	No	Button	Cancel	Closes the dialog without saving the current configuration.
Confirm	Yes	Button	Confirm	Submits the framework configuration. Review carefully before clicking.

Pitfalls

• Do not skip the upstream dependency check: The target runtime image is registered and framework-version startup requirements are confirmed.
• Confirm impact before a configuration change: Before publishing a version, check model references, image accessibility, and startup parameters.
• A success message does not prove downstream synchronization. Use Result Validation afterward.
• Use only <API_KEY>, <PERSONAL_KEY>, <ACCESS_KEY_ID>, <ACCESS_KEY_SECRET>, <BASE_URL>, and <ENDPOINT_PATH> for credential and endpoint examples.

Result Validation

Check Item	Success Signal	If Abnormal
Page is accessible	Title, navigation, and main content display correctly	Check role permission and navigation path
Managed objects are visible	Inference frameworks, framework versions, runtime images, and startup configuration display as expected	Clear filters and verify upstream dependencies
Operation result is saved	The expected state or new record appears	Review page messages, required fields, and dependencies
Downstream result is consistent	Associated pages show the change	Wait for synchronization, refresh, and return to the responsible object

FAQ

Target Object Is Missing in Frameworks

Symptom:

The expected object is missing from the list or selector.

Possible Causes:

• Active query criteria filter out the target object.
• An upstream object is disabled, or the current role lacks visibility.

Resolution:

1. Clear filters and refresh the page.
2. Verify the prerequisite object: The target runtime image is registered and framework-version startup requirements are confirmed.
3. Confirm the current role and data scope, then locate the object again.

Frameworks Action Is Unavailable

Symptom:

An expected button, menu, or state switch is unavailable.

Possible Causes:

• The current account lacks the required action permission.
• Object state, references, or prerequisites block the action.

Resolution:

1. Verify the permission for the action and the current object state.
2. Check references and prerequisites identified by the page message.
3. Remove the blocker, refresh the page, and perform the action once.

Frameworks Change Does Not Reach Downstream

Symptom:

The page reports success, but a downstream page still shows the old state.

Possible Causes:

• An associated page has stale cache or synchronization delay.
• The current and downstream pages use different roles, tenants, or data scopes.

Resolution:

1. Wait for synchronization and refresh both pages.
2. Confirm that both pages use the same role, tenant, and object scope.
3. If they still differ, return to the responsible object and verify the saved result.

Frameworks Data Differs from Another Page

Symptom:

Counts or states differ from an associated page.

Possible Causes:

• The pages use different filters, aggregation rules, or update times.
• The change is still synchronizing, or role-based data scopes differ.

Resolution:

1. Align filters and aggregation rules on both pages.
2. Check update times and wait for synchronization.
3. Compare object details instead of summary counts only.

How to Troubleshoot a Frameworks Failure

Symptom:

Submission fails or the state does not change for an extended period.

Possible Causes:

• Required fields, field combinations, or object state do not meet submission rules.
• An upstream dependency is invalid, the request failed, or the same action is already processing.

Resolution:

1. Record the redacted object, time, and complete page message.
2. Verify required fields, object state, and upstream dependencies.
3. Confirm that no identical job is processing before one retry.

Notes

• Before publishing a version, check model references, image accessibility, and startup parameters.
• Do not put real accounts, credentials, internal locations, or customer data in documentation, screenshots, tickets, or chat records.
• Authorization, deployment, deletion, publication, state, or billing changes require an auditable record and recovery plan.

Next Steps

1. Select the framework when adding a model in the model library and validate the compute plan.
2. Create a deployment with a test model to confirm service startup and health check results.
3. Regularly review framework images, startup commands, and environment variables to avoid outdated configuration.
