Quick Deployment

Feature Overview

Item	Content
Applicable Roles	Model Providers
Navigation Path	AI Infra(On-Cloud) > Model Services > Quick Deployment
Page Route	/infrahub/user/model/store
Managed Objects	Deployable models, smart recommendations, regions, resource flavors, and cost

Beginner Explanation

Quick Deployment is a deployment wizard. Select a deployable model, review recommended regions and flavors, and create the deployment after confirming resources, cost, and authorization.

Terminology

Term	Description
Deployable Scope	Models and regions available under current authorization and resources.
Smart Recommendation	A recommended region and flavor based on model and resource conditions.
Deployment Cost	Estimated cost for the selected resource flavor and runtime mode.

Recommended Operation Order

Confirm deployable scope, review recommendations and cost, create the deployment, and then immediately check status and events in My Deployments.

Beginner Checklist

Scenario	Do First	Do Not Do Directly
First visit	Review existing objects, states, and available actions	Change an unknown object
Before a change	Verify upstream dependencies, impact scope, and target object	Skip dependency and impact checks
After completion	Validate the current and downstream pages with Result Validation	Rely only on a success message
Page error	Record the redacted object, time, and page message	Submit repeatedly or record real credentials

Prerequisites

1. The current account has the permission required for Quick Deployment.
2. The Operator has completed access, authorization, models, frameworks, images, and policies.
3. Before deployment, confirm region, resource flavor, estimated cost, quota, and stop plan.

Page Description

The page provides model selection, region and flavor recommendations, and deployment submission. The current Operator account does not expose this user entry, so this page is partially verified from existing screenshots and the cross-role workflow.

Page screenshots:

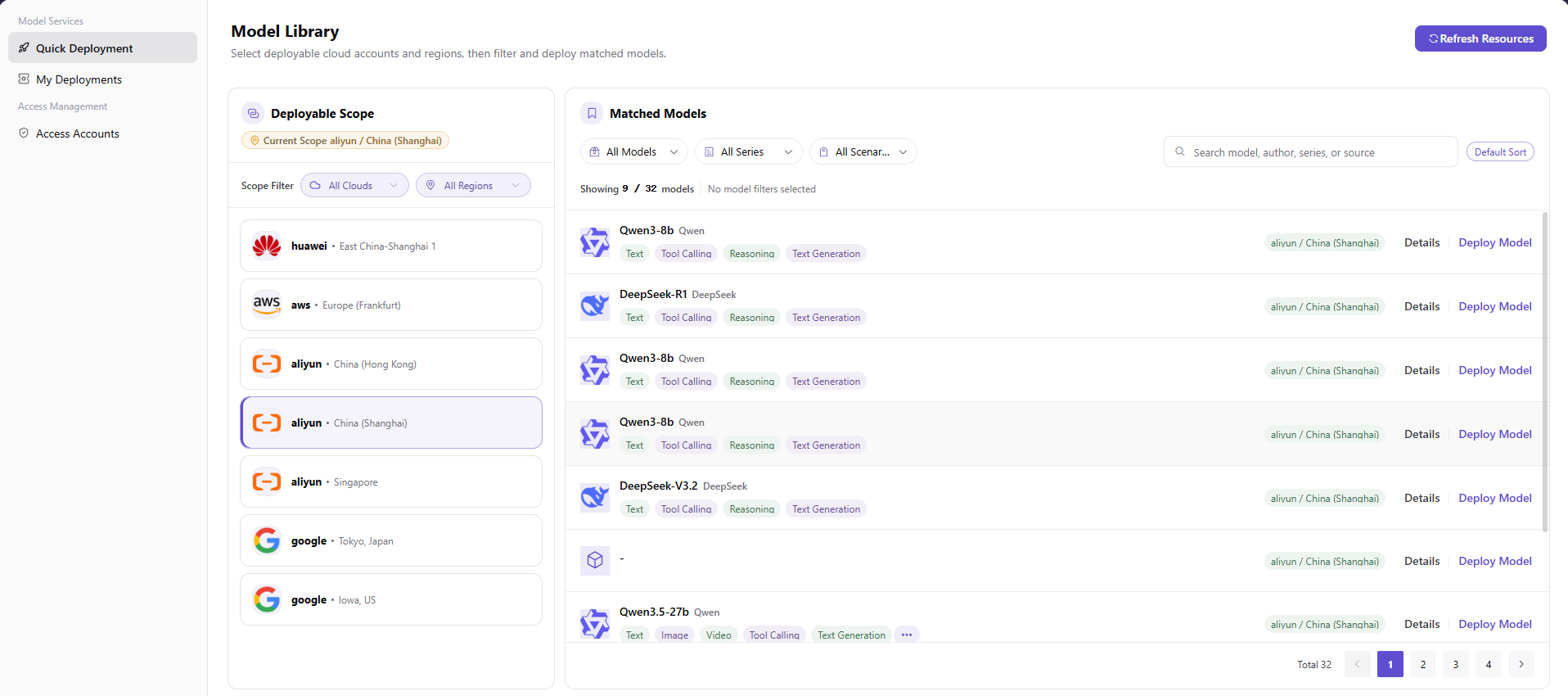

The image shows the Quick Deployment main page, displaying authorized cloud platforms and regions on the left, with matched model cards, capability tags, and Deploy Model action entries on the right.

Main Operations

View Deployable Models

1. Open Quick Deployment.
2. Locate the target model by name or capability.
3. Verify deployable regions, account, and authorization scope.

Review Smart Recommendation

1. Select the target model and open Smart Recommendation.
2. Compare recommended regions, resource flavors, availability, and estimated cost.
3. If no recommendation is returned, check account, authorization, model, and policy prerequisites.

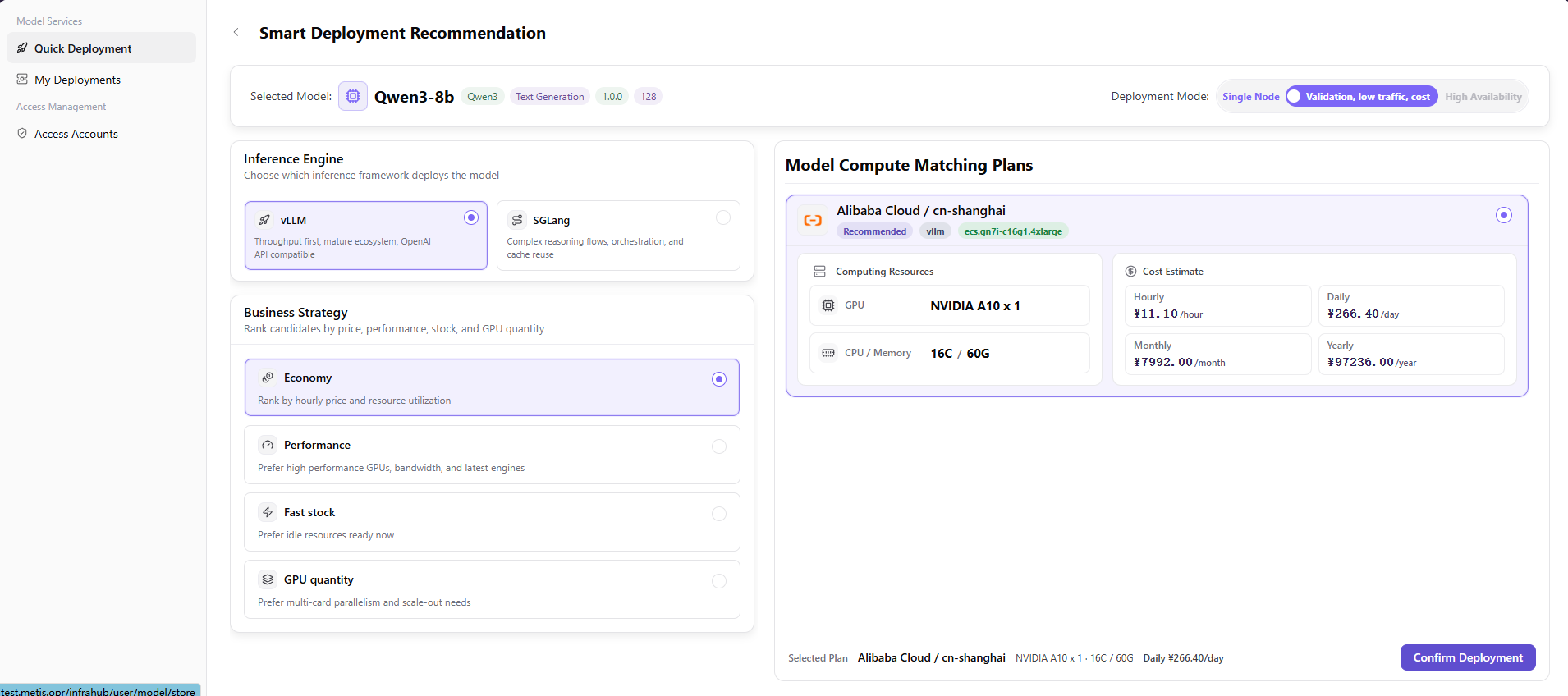

The image shows the Smart Deployment Recommendation page, supporting deployment modes (single node/low cost/HA), inference engines (vLLM/SGLang), business strategy preferences, and presenting the recommended compute plan with cost estimates on the right.

Create Model Deployment

1. Confirm the model, region, account, flavor, and cost.
2. Enter the deployment name and required configuration.
3. Click "Deploy" to create the job.
4. Open My Deployments to check status and events. Do not repeatedly submit the same failed job.

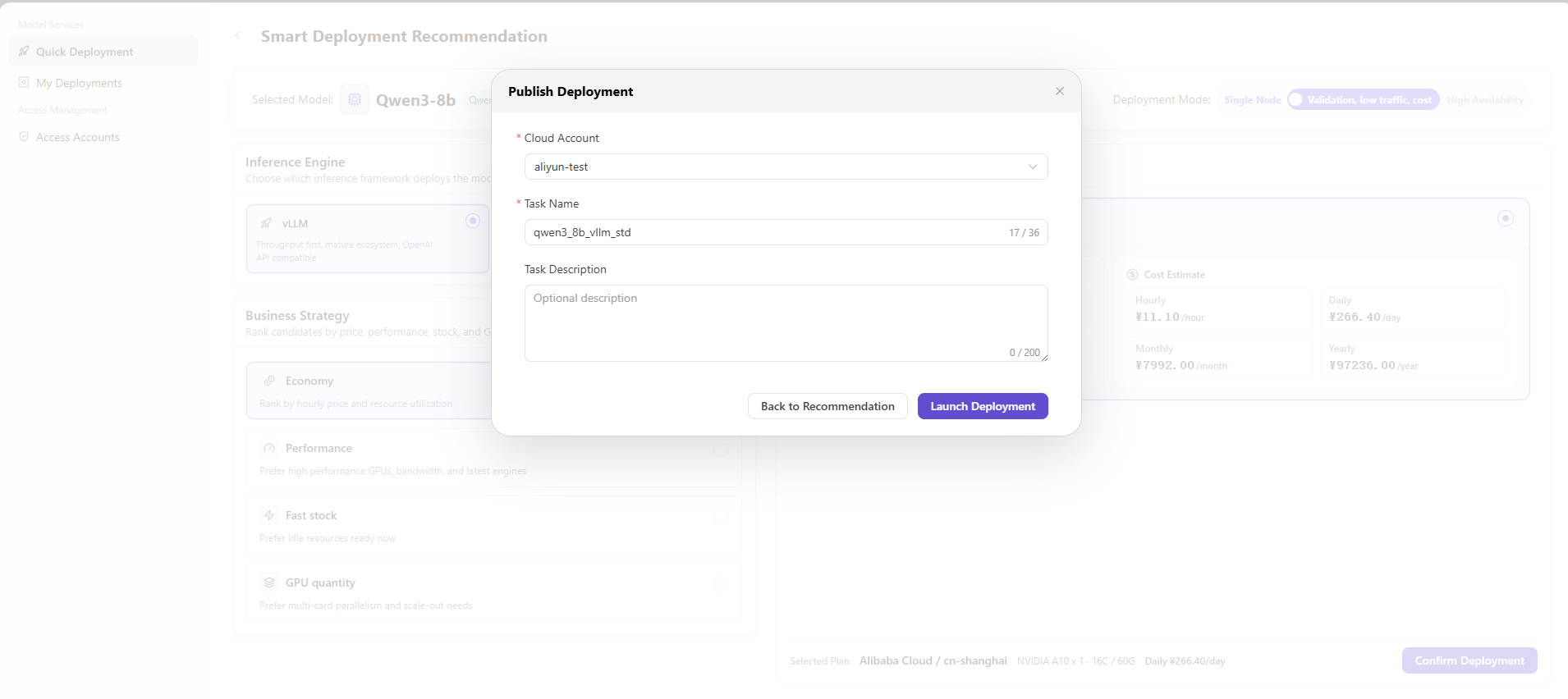

The image shows the Publish Deployment task creation dialog, where you select the target cloud account, specify the deployment task name, and provide an optional description before launching deployment.

Parameter Reference

Field Name	Required	Field Type	Example	Description
Current Scope	No	Status tag	Sample Cloud / Sample Region	Displays the currently selected deployable cloud platform and region.
All Clouds	No	Dropdown filter	All Clouds	Filters deployable scope by cloud platform.
All Regions	No	Dropdown filter	All Regions	Filters deployable scope by region.
All Models	No	Dropdown filter	All Models	Filters matched models by model type.
All Series	No	Dropdown filter	All Series	Filters matched models by model series.
All Scenarios	No	Dropdown filter	All Scenarios	Filters matched models by model scenario.
Search	No	Input/Button	Search	Searches by model name, author, series, or source.
Default Sort	No	Button	Default Sort	Sorts the model list by the page default rule.
Details	No	Action entry	Details	Opens model details.
Deploy Model	Yes	Action entry	Deploy Model	Enters the Smart Deployment Recommendation flow.
Selected Model	Yes	Display field	Sample Model	Displays the model and tags prepared for deployment.
Deployment Mode	Yes	Segmented control	Single Node	Selects deployment mode. The screenshots show single node, validation/low traffic/cost, and high availability options.
Inference Engine	Yes	Radio card	vLLM	Selects the inference engine used to deploy the model.
Business Strategy	Yes	Radio card	Economy	Selects the sorting preference for recommended deployment plans.
Model Compute Matching Plans	Yes	Recommendation card	Sample Cloud / Sample Region	Displays the recommended cloud platform, region, specification, and cost combination.
GPU	No	Display field	Sample GPU x 1	GPU resources in the recommended plan.
CPU / Memory	No	Display field	Sample CPU / Sample Memory	CPU and memory specification in the recommended plan.
Cost Estimate	No	Display field	Sample cost	Displays hourly, daily, monthly, and yearly cost estimates. Real amount details are not recorded in documentation.
Confirm Deployment	No	Button	Confirm Deployment	Opens the publish deployment confirmation dialog.
Cloud Account	Yes	Dropdown	example-cloud-account	Selects the cloud account used to launch deployment. Use placeholder examples only in documentation.
Task Name	Yes	Text	demo_deploy_task	Deployment task name. Avoid real business or customer information.
Task Description	No	Multiline text	Sample task description	Adds deployment notes. Do not write accounts, secrets, internal addresses, or internal parameters.
Back to Recommendation	No	Button	Back to Recommendation	Returns to the recommendation page without submitting the deployment task.
Launch Deployment	Yes	Button	Launch Deployment	Final action that launches the deployment task. Review carefully before clicking.

Pitfalls

• Do not skip the upstream dependency check: The Operator has completed access, authorization, models, frameworks, images, and policies.
• Confirm impact before a configuration change: Before deployment, confirm region, resource flavor, estimated cost, quota, and stop plan.
• A success message does not prove downstream synchronization. Use Result Validation afterward.
• Use only <API_KEY>, <PERSONAL_KEY>, <ACCESS_KEY_ID>, <ACCESS_KEY_SECRET>, <BASE_URL>, and <ENDPOINT_PATH> for credential and endpoint examples.

Result Validation

Check Item	Success Signal	If Abnormal
Page is accessible	Title, navigation, and main content display correctly	Check role permission and navigation path
Managed objects are visible	Deployable models, smart recommendations, regions, resource flavors, and cost display as expected	Clear filters and verify upstream dependencies
Operation result is saved	The expected state or new record appears	Review page messages, required fields, and dependencies
Downstream result is consistent	Associated pages show the change	Wait for synchronization, refresh, and return to the responsible object

FAQ

Target Object Is Missing in Quick Deployment

Symptom:

The expected object is missing from the list or selector.

Possible Causes:

• Active query criteria filter out the target object.
• An upstream object is disabled, or the current role lacks visibility.

Resolution:

1. Clear filters and refresh the page.
2. Verify the prerequisite object: The Operator has completed access, authorization, models, frameworks, images, and policies.
3. Confirm the current role and data scope, then locate the object again.

Quick Deployment Action Is Unavailable

Symptom:

An expected button, menu, or state switch is unavailable.

Possible Causes:

• The current account lacks the required action permission.
• Object state, references, or prerequisites block the action.

Resolution:

1. Verify the permission for the action and the current object state.
2. Check references and prerequisites identified by the page message.
3. Remove the blocker, refresh the page, and perform the action once.

Quick Deployment Change Does Not Reach Downstream

Symptom:

The page reports success, but a downstream page still shows the old state.

Possible Causes:

• An associated page has stale cache or synchronization delay.
• The current and downstream pages use different roles, tenants, or data scopes.

Resolution:

1. Wait for synchronization and refresh both pages.
2. Confirm that both pages use the same role, tenant, and object scope.
3. If they still differ, return to the responsible object and verify the saved result.

Quick Deployment Data Differs from Another Page

Symptom:

Counts or states differ from an associated page.

Possible Causes:

• The pages use different filters, aggregation rules, or update times.
• The change is still synchronizing, or role-based data scopes differ.

Resolution:

1. Align filters and aggregation rules on both pages.
2. Check update times and wait for synchronization.
3. Compare object details instead of summary counts only.

How to Troubleshoot a Quick Deployment Failure

Symptom:

Submission fails or the state does not change for an extended period.

Possible Causes:

• Required fields, field combinations, or object state do not meet submission rules.
• An upstream dependency is invalid, the request failed, or the same action is already processing.

Resolution:

1. Record the redacted object, time, and complete page message.
2. Verify required fields, object state, and upstream dependencies.
3. Confirm that no identical job is processing before one retry.

Notes

• Before deployment, confirm region, resource flavor, estimated cost, quota, and stop plan.
• Do not put real accounts, credentials, internal locations, or customer data in documentation, screenshots, tickets, or chat records.
• Authorization, deployment, deletion, publication, state, or billing changes require an auditable record and recovery plan.

Next Steps

1. Go to My Deployments to view deployment status, events, and monitoring.
2. After deployment succeeds, obtain redacted invocation information and perform a test call according to permission.
3. Continue to monitor cost estimates, resource usage, service status, and business access results.
